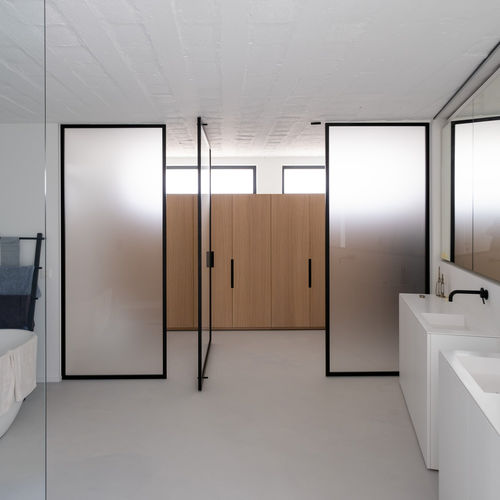

Interior door PORTAPIVOT 5730
tempered glassanodized aluminumtwo-way

interior door
interior door
interior door
interior door
interior door
interior door
Add to favorites
Compare this product


tempered glass, anodized aluminum
Opening system
two-way, pivoting
black, copper-colored, silver-colored
Other characteristics
with fixed leaf, double-leaf, decorative

Min.: 1,800 mm (70.87 in)

Max.: 2,975 mm (117.13 in)


Min.: 1,500 mm (59.06 in)

Max.: 9,000 mm (354.33 in)


Pivot door system made from high quality anodized aluminium available in 4 decorative finishes, black, silver, bronze and stainless steel. Anodizing is an electrochemical process that converts the metal surface into a decorative, durable, corrosion-resistant finish. The frame can be fitted with any 6 or 8 mm thick tempered glass for endless design purposes. Specifications Pivot door = minimal frame 57 x 30 mm Fixed partition = minimal frame 35 x 30 mm Available in 4 anodised colours Compatible with 6 or 8 mm glass Stealthpivot fitted inside frame Available with and without door frame Easy assembly & installation Dimensions Minimum height: 1800 mm Maximum height: 2975 mm Minimum width: 1500 mm Maximum width: 9000 mm Portapivot 5730 + 3530 kit Made to measure aluminium frame 57 x 30 mm Made to measure aluminium frame 35 x 30 mm Stealthpivot hinge set Assembly accessories Stealthpivot Compact size Modular axis point Self-closing technology -90° 0° +90° open/hold positioning Configurable swing operation: 180° or 360°
