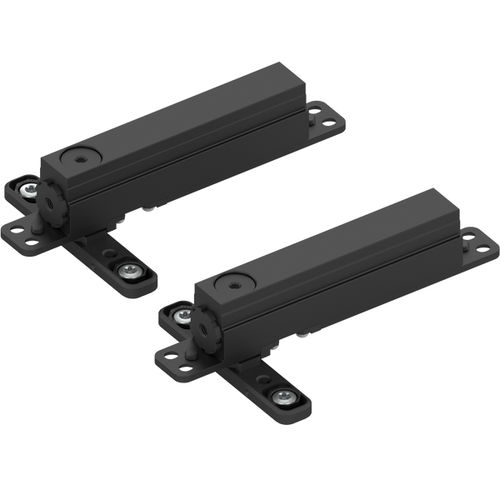

Door hinge STEALTHPIVOT NL - 750Nmetalconcealedhome
Add to favorites
Compare this product
Characteristics
- Product applications
- door
- Material
- metal
- Technical characteristics
- concealed
- Market
- home
- Finish
- black
- Style
- contemporary
- Opening angle
- 180°, 90°
- Height
33 mm
(1.3 in)- Width
170 mm
(6.7 in)- Thickness
25 mm
(1 in)- Maximum load
75 kg
(165.3 lb)
Description
Stealthpivot NL is designed to be mounted on top of a finished solid surface without the need for any built-in fixtures. The hinge is fitted inside the door and therefor remains invisible after installation, hence the name "Stealth pivot".
Designed for doors up to 75 kg (165 lbs)
Self-closing technology
Fitted with 750N dampers
Configurable swing operation 180° or 360°
Variable axis point (min. 85 mm)
-90° | 0° | +90° open/hold positioning
Maintenance free design
200.000 cycles tested
Designed for indoor residential use
