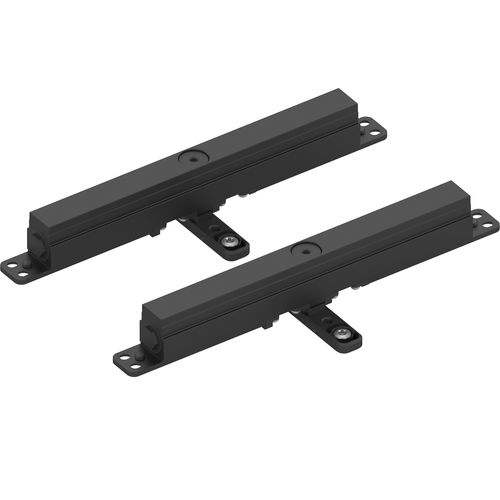

Door hinge STEALTHPIVOT XL - 750N

metalconcealedrotating

Stealthpivot is designed to be mounted on top of a finished surface without the need for any built-in fixtures. The pivot hinge is fitted inside the door and therefor remains invisible after installation, hence the name 'Stealth pivot'. Stealthpivot XL is created as the ideal pivot hinge setup for larger and heavier pivot doors up to 150 kg or 330 lbs. This version is equipped with 750N gas springs that offer more closing force versus the standard 480N version. (The standard Stealthpivot XL version with 480N will be sufficient in 99.9% of use cases!)Designed for doors up to 150 kg (330 lbs) Self-closing technology Fitted with 750N dampers Configurable swing operation 180° or 360° L 270 mm x H 33 mm x W 25 mm Axis point 1250 mm 1/4 up to 1/2 -90° | 0° | +90° open/hold positioning Maintenance free design 200.000x cycles tested Designed for indoor residential use The kit content you’ll receive includes everything you need. Our manuals guide you through the step-by-step assembly and installation process
