IP20 moving head spot XR 1700
for stage lightingfor indoor usespot

IP20 moving head spot
IP20 moving head spot
Add to favorites
Compare this product


Protection class
for stage lighting
Interior/exterior use
for indoor use
Beam type
Other characteristics
adjustable, effect

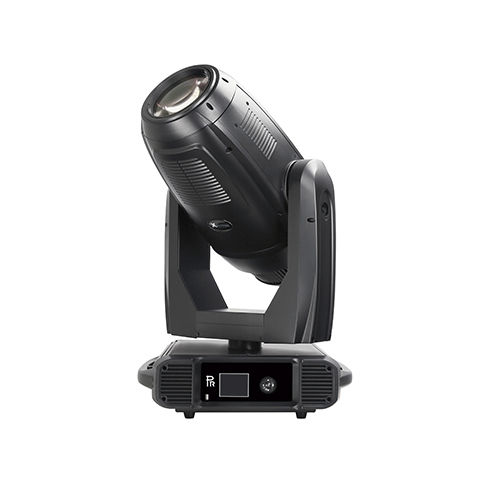

XR 1700 Spot is a very powerful moving head, equipped with advanced OSRAM 1700W lamp and optimized optical system, which can produce sharp beam (narrow angle 5°) effect. 5° to 55° zoom, CMY linear color mixing system can provide a full spectrum of colors. Key Features: Light Source: OSRAM HTI Lok-it 1700/PS(5,600K,single-ended), 750hrs Input Voltages:100V~240V AC, 50/60Hz Power Consumption: 2100W@220V Strobe: double shutter blades, 0.3~25 F.P.S Dimmer: mechanical dimmer 0-100% linearly adjustable Prism: 2x6-facet prisms(circular and linear), bi-drectionally rotating at variable speed, indexable Frost: 2 frost filters(heavy +light), linearly adjustable and both can overlap Iris: 5-100% linearly adjustable with macros CTO: 0-100% linear CTO system Focus/Zoom: DMX linear focus/zoom Light Angle: 5°~55° Head Movement: pan 540º and tilt 270º with auto position correction Control: DMX512, 3 pins and 5 pins interface Channels: short mode 32 channels, standard mode 39 channels, and extended mode 46 channels Other Functions: DMX512 wireless receiver, DMX512 wireless transmitter(optional) Housing: composite plastic IP20 Net Weight: 52kg
