Manual turntable RPM 5
belt-driven4533

manual turntable
manual turntable
manual turntable
manual turntable
Add to favorites
Compare this product


Characteristics

Arm type
manual
Drive system
belt-driven
Rotation speed
45, 33
Options
without integrated preamplifier

Description

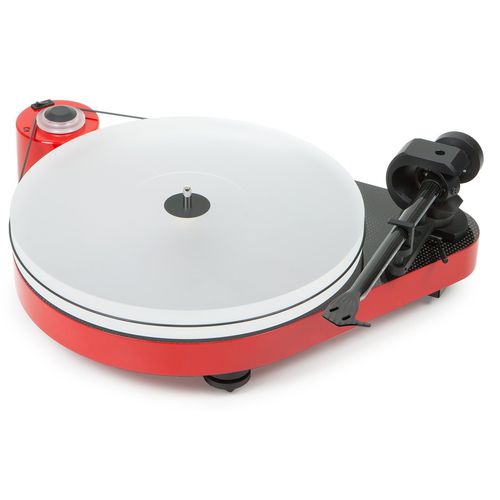

Performance belt-driven turntable with 9" EVO carbon fiber tonearm and outboard motor Ingenious styling for audiophile listeners The RPM 5 Carbon utilizes a radical concept with a lot of innovations that originate from its big brother RPM 9 Carbon. A low resonance chassis holds a newly designed inverted platter bearing with ceramic ball for further reduced rumble. The acoustically inert platter is made from acrylic. An outboard 15V AC motor is smoothly driven using an ultra-precision AC generator with DC power supply for further enhanced speed stability. The classy 9"cc Evo tonearm, which is made from carbon fiber, is suitable for any high-quality MM or MC cartridge. A TPE-damped counterweight eliminates unwanted resonances. All ingredients add up to a miracle in sound for the price. Its ultra-stylish look is available in 3 exclusive high-gloss finishes. TECHNICAL SPECIFICATIONS Speed 33, 45 rpm (manual speed change) Drive Principle belt drive Platter 300mm acrylic Main Bearing stainless steel axle with ceramic ball Wow & Flutter 33: +/- 0.12% 45: +/- 0.10% Speed Drift 33: +/- 0.17% 45: +/- 0.08% Signal to Noise -73dB Tonearm 9"cc EVO carbon Effective Arm Length 230 mm Effective Arm Mass 8g Overhang 18mm Tracking Force 0 - 25mN Power Supply output: 15 volts DC / 800 mA power supply input: 110/240 Volt - 50 or 60 Hz Power Consumption 5 watts max / < 0.3 watt standby Dimensions 430 x 150 x 323 mm (WxHxD) Weight 8.0 kg (net)
