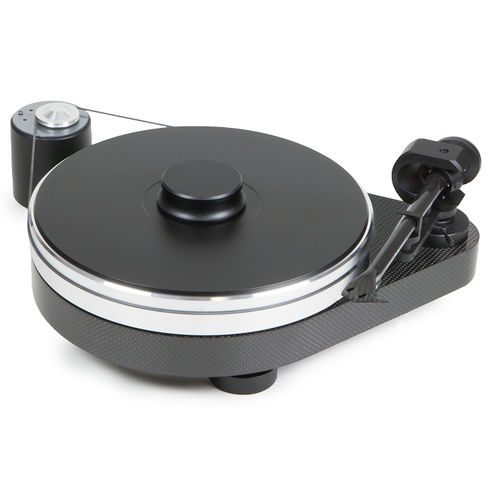

High-end belt-driven turntable with 9" EVO carbon fiber tonearm, outboard motor, and magnetic feet
Due to extensive research and development, we now lift our classic RPM design to an even higher level. The RPM 9 Carbon uses a new extra heavy chassis which features a special CNC machined MDF plate that incorporates hard resin coated steel pellets to form an extra heavy precise sandwich construction. A special complex heat treatment and a carbon surface coating ensure superior low resonance levels. The mass-loaded chassis is effectively decoupled from its surface using magnetic feet. Combined with a new special polished aluminum platter with internal TPE damping and a vinyl layer on top, the inverted ceramic main bearing delivers an absolute stable turntable speed with extra low rumble. The extra heavy outboard motor unit is equipped with a precise motor control and features a built-in switch between 33 & 45 rpm. Last but not least the no compromise 9“ EVO tonearm with conical carbon-fiber armtube and inverted bearing design ensures perfect tracking, even with demanding cartridges.
DOWNLOAD USER MANUAL
TECHNICAL SPECIFICATIONS
Super Pack Option
Sumiko Blackbird
Nominal Speeds
33 / 45 rpm
Dust Cover
No
Motor Completely Decoupled
Yes
RCA Phono Jacks
Yes
Tonearm
Pro-Ject 9cc EVO
Effective Tonearm Length
9 in / 230 mm
Effective Tonearm Mass
8.0 g
Overhang
18 mm
Downforce Range
1 - 3.5 grams
Speed Drift
33: +/- 0,10% 45: +/- 0,10%
Wow & Flutter
33: +/- 0,10% 45: +/- 0,10%
Signal-to-Noise
- 75dB
Power Supply
Outboard Power Supply
Power Consumption
1W
Dimensions (WHD)
17.33 x 7.09 x 12.8 in., 440 x 180 x 325 mm
Weight
36.82 lbs., 16.7 kg
Finish
Black/Carbon Fiber
