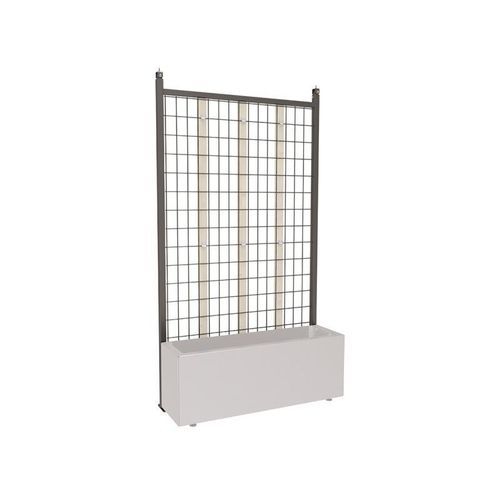

Green wall trellis 201136.GPRO

galvanised steelsteelpainted steel

Product description
Mesh panel designed to support climbing plants and integrate with bus shelters and urban shelters. Easy to install; compatible with all shelters with four posts and no side cladding.

Colour options

• Procity® Grey
• RAL 9010
• RAL 5010
• RAL 3020
• RAL 9005
• RAL 7044
• RAL 3004
• RAL 6005
• RAL 8017
• Corten effect

Reference & availability

• Reference: 201136.GPRO
• Availability: 5 weeks
• Weight: 40 Kg

Associated products

• Planter for mesh screen
• Screen cladding
• Modulo bus shelter
• Milan bus shelter

Technical specifications

• Dimensions: width 1060 x adjustable height from 1920 to 3390 mm
• Structure: frame crossbar in 30 x 30 mm steel tube, thickness 1.5 mm; frame upright in 35 x 35 mm steel tube, thickness 1.5 mm; mesh made of ø 5 mm wire
• Finish: painted steel on galvanised steel, available in the listed colour range
• Available colours: RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity® Grey, Corten effect
• Fixing: feet on base plates 125 x 50 mm, thickness 5 mm, with 2 slotted holes 12 x 24 mm
• Compatibility: fits all shelters with 4 posts and no side cladding
• Options: palm planter, screen cladding
• Reference code: 201136.GPRO
• Weight: 40 Kg
