Outdoor information panel 307016

sheltered

Product description

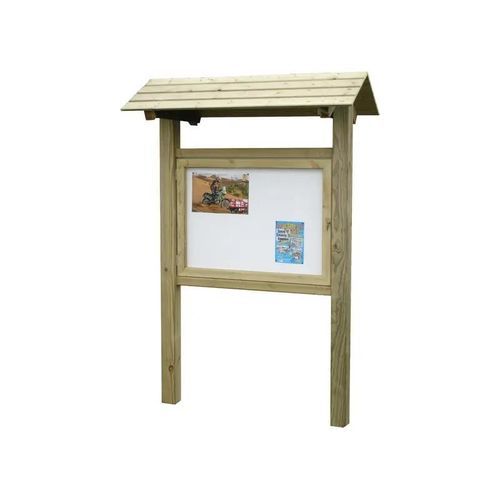

The Turin outdoor notice board with a raw softwood roof provides a covered, weather-resistant display solution for outdoor information. Its natural wooden structure protects the glazed display while ensuring clear legibility of notices and documents.

Key features

• Single-sided outdoor notice board
• Raw softwood roof and frame for a natural appearance
• 6 mm plexiglass glazing for protected readability
• Pre-assembled; A2 stainless steel and zinc-plated screws supplied
• Designed for direct concreting on posts for secure fixing

Available sizes / display capacities

• 8 A4 — Display case: 960 x 960 mm; Display surface: 830 x 830 mm; Total dimensions: H 2420 mm x W 1140 mm
• 18 A4 — Display case: 1300 x 1300 mm; Display surface: 1170 x 1170 mm; Total dimensions: H 2420 mm x W 1540 mm

Additional information

• Glazing: 6 mm thick plexiglass
• Structure: softwood, pressure-treated autoclave class 4
• Panel: 10 mm thick Komacel PVC
• Roofing: flat weatherboard in softwood, pressure-treated autoclave class 4
• Finish: raw softwood structure
• Closure: lock with key
• Fixing: concreted on 90 x 66 mm posts, fixing depth 500 mm
• Assembly: pre-assembled; A2 stainless steel and zinc-plated screws provided
• Reference: 307016
• Availability: 5 weeks
• Weight: 95 Kg

Technical specifications

• Display: single-sided
• Display capacity: 8 or 18 A4
• Total dimensions: H 2420 mm x W 1140 mm or H 2420 mm x W 1540 mm
• Display case dimensions: 960 x 960 mm or 1300 x 1300 mm
• Display surface: 830 x 830 mm or 1170 x 1170 mm
• Glazing: 6 mm plexiglass
• Structure: softwood, autoclave treated class 4
• Closure: lock with key
• Panel: Komacel PVC 10 mm
• Roofing: flat weatherboard in softwood, autoclave treated class 4
• Fixing: concreted on 90 x 66 mm posts, 500 mm depth
• Assembly: pre-assembled; A2 stainless steel and zinc-plated screws supplied
