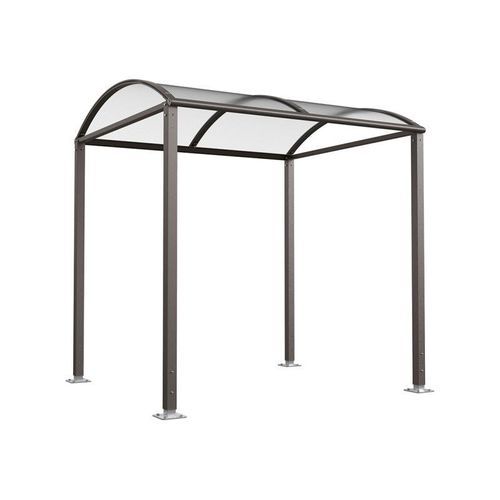

Public space covered passageway Voûte "S"

Description
A modular pedestrian shelter configurable to site requirements. This covered walkway is designed for easy installation in car parks to protect and guide pedestrians from weather and motor traffic. Its modular concept allows you to extend the length on demand by adding extension modules.

Key features

• Modular pedestrian shelter, configurable to requirements
• Designed to protect pedestrians from weather and motor traffic (suitable for car parks)
• Modular design: initial unit plus extension modules to reach required length
• Delivered painted on galvanised steel according to available colours
• Installation on base plates or concrete blocks

Available colours (selection)

• Procity Grey
• RAL 9010
• RAL 5010
• RAL 3020
• RAL 9005
• RAL 7044
• RAL 3004
• RAL 6005
• RAL 8017
• Corten effect

Characteristics / technical specifications

• Reference: 599808.GPRO
• Availability: 4 weeks
• Weight: 135 Kg
• Dimensions: 1666 mm wide x 2520 mm long x 2549 mm high
• Structure: 80 x 80 mm galvanised steel tube posts
• Roof: 40 x 60 mm steel tube cross-members; 6 mm thick anti-UV treated cellular polycarbonate panels; aluminium profile side beams; curved aluminium profile hoops
• Extension: additional module, 2520 mm long
• Finish: painted steel on galvanised
• Installation: on base plates or 400 x 400 mm square section concrete blocks, 400 mm high
• Style options: Initial unit or Extension module
