Protective barrier LISBON

fixedsteelzinc-plated steel

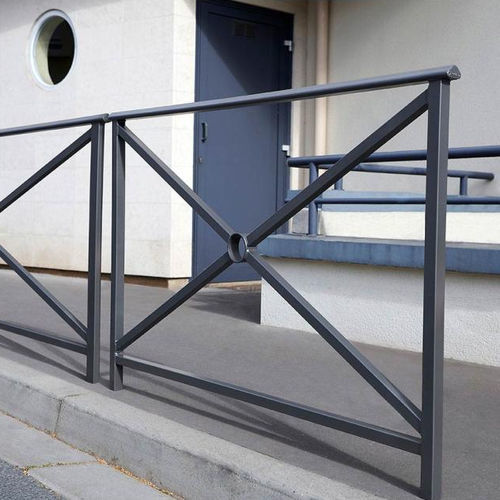

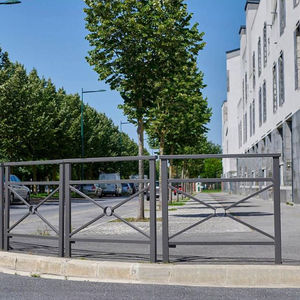

A true classic in urban design: a diagonal cross for an eye-catching look and an exceptionally comfortable top handrail which extends slightly past the edges of the frame to provide a continuous line when installed. Two lengths: 1000 or 1500 mm. Total height : 1180 mm Above-ground height: 1000 mm. Posts: steel tubes 35 x 35 mm. Three frame styles, standard is simple cross: simple cross frame 30 x 30 mm with central ring Ø 89 mm ; simple cross frame 30 x 30 mm with 2 rosettes ; simple cross frame 25 x 15 mm with Ø 4 mm steel mesh Top handrail : an exceptionally comfortable top handrail which extends slightly past the edges of the frame* Finish: zinc primed and painted in our colours. Installation: concreted directly into ground (base plates available as option). Options: installation: on oval base plates - can be made removable using our Lockblock socket system. Self-draining through gravel at bottom of sockets composed of two sockets operated by a triangle key. Code 203400
