Aluminum junction profile ZLT25

anodized aluminumfor floor coveringsfor floor

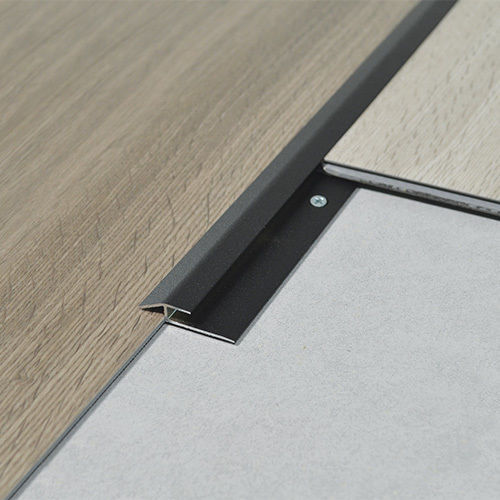

The ZEROTEC ZLT25 is an aluminum profile designed to provide a sloped, ADA-compliant edge transition and edge protection for resilient and LVT flooring. It features a solid base with tapered openings for mechanical fastening or for bonding with appropriate adhesive, accommodating flooring thicknesses from 3/32” (2.5 mm) up to 1/4” (6 mm).

Main applications

• Edge protection and finishing for LVT, SPC and other resilient floor coverings.
• Suitable for new installations and renovations where flooring is laid over existing substrates.
• Provides a sloped transition compatible with ADA accessibility requirements.
• Fixing options: mechanical fastening through tapered openings or bonded with suitable adhesives.

Materials and finishes available

• Aluminum — Anodized: ZLT25/50 ASF (Silver)
• Aluminum — Anodized: ZLT25/60 ASF (Silver)
• Aluminum — Anodized: ZLT25/50 ATF (Titanium)
• Aluminum — Anodized: ZLT25/60 ATF (Titanium)
• Aluminum — Powder Coated: ZLT25/50 A65F (Embossed matt Black)
• Aluminum — Powder Coated: ZLT25/60 A65F (Embossed matt Black)

Technical characteristics / specifications

• Family / Model: ZEROTEC ZLT25
• Application: Transition/profile for resilient and LVT flooring; also suitable for installation over existing floors.
• Edge type: Sloped edge providing ADA-compliant transition and edge protection.
• Compatible flooring thickness: from 3/32” (2.5 mm) up to 3/16” (5 mm) or 1/4” (6 mm) depending on variant.
• Anchoring / fixing: Mechanical fastening through tapered openings or bonded using appropriate adhesive.
• Material: Aluminum (see finishes above).

Documentation & downloads

• ZEROTEC ZLT25 — Data sheet (PDF)
• Technical drawings / detail packs: ZLT25-A INCH.zip, ZLT25-A MM.zip
