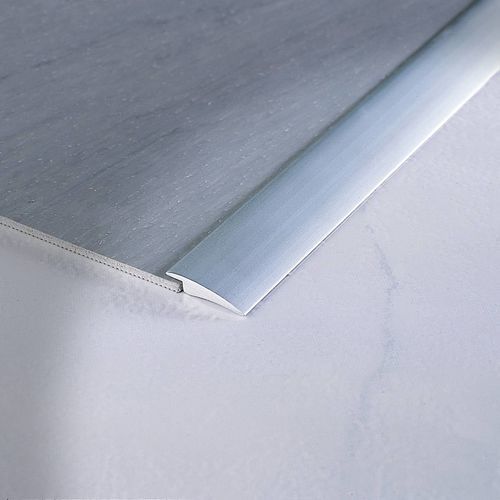

Brass transition profile LINOTEC AP

anodized aluminumfor floor coveringsfor floor

LINOTEC AP perimeter edging trims designed for very thin floor coverings (PVC, linoleum and similar) with a thickness of 2–3 mm. They provide a low-profile finish that conceals cut imperfections and minimises additional thickness.

Materials and product variants

• Aluminium (Anodized)
  • Model variants: AP 17 ASA (self-adhesive), AP 17 ASN (non-adhesive)
  • Height (BxH): 17 mm
  • Colour: Silver
  • Type: Flat-level terminal trim with slight rounding; available self-adhesive or non-adhesive
• Brass (Polished)
  • Model variants: AP 19 OLA (self-adhesive), AP 19 OLN (non-adhesive)
  • Height (BxH): 19 mm
  • Finishing: Polished brass
  • Type: Solid polished brass profile with good resistance to mechanical impact, chemical corrosion and wear; available self-adhesive or non-adhesive

Documentation and technical resources

• Datasheet available (Linotec AP - Datasheet)
• Technical drawings and sectional images available (inches/mm packs for aluminium and brass)

Technical characteristics / specifications

• Suitable floor coverings: PVC, linoleum and other very thin materials (2–3 mm thickness)
• Profile type: Perimeter / terminal trims with minimal height increase
• Materials: Anodized aluminium (silver) and polished brass
• Available sizes (BxH): 17 mm (Aluminium variants), 19 mm (Brass variants)
• Article codes: AP 17 ASA, AP 17 ASN, AP 19 OLA, AP 19 OLN
• Installation types: Self-adhesive or non-adhesive options
• Available downloads: product datasheet (PDF) and technical drawing packages (ZIP/inch-mm patterns)
