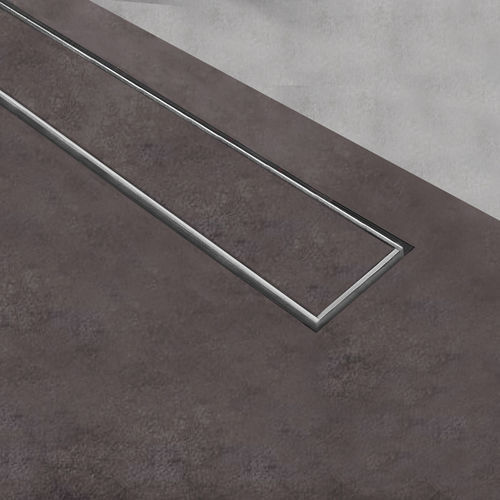

Stainless steel grating for drain channel SHOWERTEC STL CTF

steelaluminumplastic

Showertec Linear STL-CTF are tileable covers designed to accommodate a finished tile inside an AISI 316 stainless steel containment tray mounted on an aluminium support over a steel channel, providing a framed-tile appearance and reliable performance for pedestrian use.

Key points

• Containment tray in AISI 316 stainless steel (DIN 1.4404) that houses the finished tile to create an internal frame effect.
• Stainless steel tray is fixed to an aluminium support which interfaces with the steel channel.
• System rests on the steel channel via plastic feet that cushion acoustic transmission.
• Channel islands under the feet ensure unobstructed water flow and stability of the tiled section under pedestrian loads.
• Designed for linear shower/drain systems where a tileable cover is required; suitable for pedestrian traffic.

Available sizes / Articles

• B (mm): 600 — Art.: STL-CTF 600
• B (mm): 700 — Art.: STL-CTF 700
• B (mm): 800 — Art.: STL-CTF 800
• B (mm): 900 — Art.: STL-CTF 900
• B (mm): 1000 — Art.: STL-CTF 1000
• B (mm): 1200 — Art.: STL-CTF 1200

Materials and finishes

• Material: Stainless steel AISI 316 (DIN 1.4404).
• Finish available: Natural.

Characteristics / technical specifications

• Product family: Showertec Linear – STL-CTF tileable covers with internal frame.
• Containment tray material: AISI 316 stainless steel.
• Support: aluminium support fixed to steel channel.
• Anti-vibration / acoustic: plastic feet to cushion acoustic transmission.
• Drainage & stability: channel islands under feet allow water flow and guarantee stability of the tiled part.
• Typical application: linear shower/drain systems with tileable covers, pedestrian use.
• Typical available lengths: 600, 700, 800, 900, 1000, 1200 mm.
• Documentation: product book, datasheet and installation instructions (PDF).
