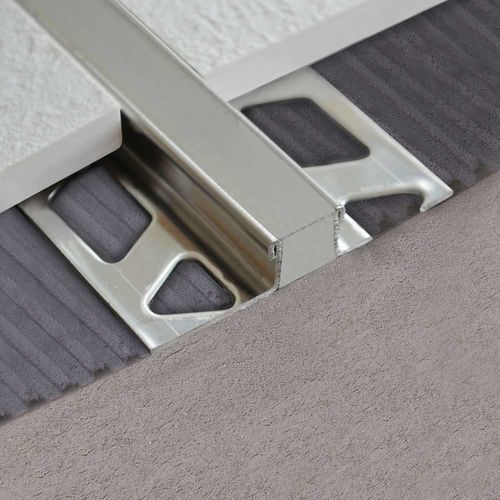

Linoleum expansion joint COFLEX CT

304 stainless steelfor floorfor outdoor use

Product overview

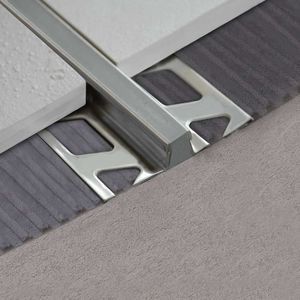

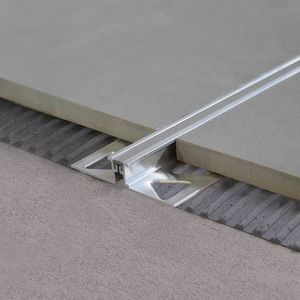

Expansion joint with a metal structure and an EPDM infill suitable for sanding and grinding. Designed for porcelain tile and compatible with marble and natural stone when polished. Continuous metal wings protect tile edges and reduce mechanical stresses from heavy pedestrian or wheeled traffic. Trimtec-type profiles with rounded top edge and perforation on the wings absorb elevated loads and integrate with adhesive and tiles. The EPDM infill hardness is balanced to provide flexibility and resistance. Suggested maximum flooring bay (UNI 11146:2024): 16 m². Typical applications: retail, hotels, sports centres, schools and public buildings.

How to install joints COFLEX CT
If a screed splitting joint exists, align the expansion joint exactly over it. Apply tile adhesive in the application area using suitable tools, press the joint wings into the adhesive and set the tile so that the joint does not stand above the floor (it may be 0.5–1 mm lower). Fill the gap between tile and joint with grout. Verify level and alignment during laying to ensure continuous load transfer and correct sealing.

Materials and finishes available
Stainless Steel AISI 304 / Polished

Table: BxH (mm) | Art. | Color
8 | CT 80 IL23 | Embossed Cement Grey
10 | CT 100 IL23 | Embossed Cement Grey
12.5 | CT 125 IL23 | Embossed Cement Grey
15 | CT 150 IL23 | Embossed Cement Grey
20 | CT 200 IL23 | Embossed Cement Grey

Table: BxH (mm) | Art. | Color
8 | CT 80 IL51 | Black
10 | CT 100 IL51 | Black
12.5 | CT 125 IL51 | Black
15 | CT 150 IL51 | Black
20 | CT 200 IL51 | Black

Characteristics / Technical specifications

• Series / commercial name: COFLEX CT
• Product type: Metal expansion joint with EPDM insert suitable for sanding and grinding
• Recommended for: Porcelain tile; protection of tile, marble and stone edges
• Profile structure: Continuous metal wings composed of Trimtec-type profiles with rounded top edge and perforations to absorb loads and tensions
• Infill material: EPDM (hardness balanced for flexibility and resistance)
• Suggested maximum flooring bay (UNI 11146:2024): 16 m²
• Typical applications: Retail shops, hotels, sporting centres, schools, public buildings
• Available material / finish: Stainless Steel AISI 304, Polished
• Available sizes (BxH mm) and articles: 8 (CT 80 IL23 / CT 80 IL51), 10 (CT 100 IL23 / CT 100 IL51), 12.5 (CT 125 IL23 / CT 125 IL51), 15 (CT 150 IL23 / CT 150 IL51), 20 (CT 200 IL23 / CT 200 IL51)
• Infill visible colours: Embossed Cement Grey (P23), Black (P51)
• Installation notes: Align to screed splitting joint; embed wings in adhesive; joint height must be equal to or 0.5–1 mm below the finished tile surface; grout joint-to-tile gap
• Suitable for internal and external installations; stainless steel version offers high corrosion resistance
