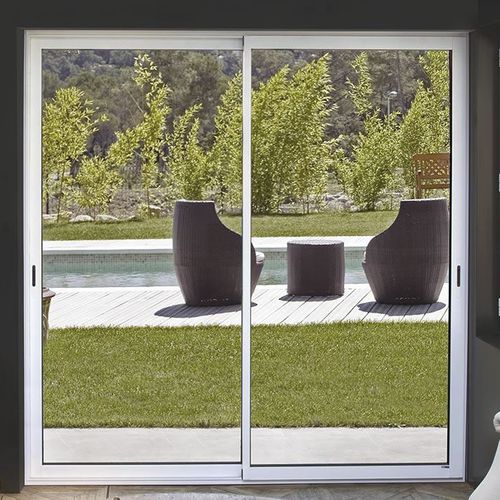

Sliding patio door TOUAREG® TH
aluminumdouble-glazedthermal break

sliding patio door
sliding patio door
sliding patio door
sliding patio door
sliding patio door
sliding patio door
sliding patio door
Add to favorites
Compare this product


Characteristics

Opening system
sliding
Material
aluminum
Glazing
double-glazed
Technical characteristics
thermal break, acoustic, wind-proof, waterproof, high-performance

Description

Range of aluminium sections for sliding frame doors and windows. TOUAREG® TH, compliant with French regulations RT 2012, is designed for the manufacture of traditional straight-cut sliding windows up to 8 leaves, 4 rails and in pocket frame, 4 leaves 2 rails. Highlights : - Compliant with French regulations RT 2012 - Qualifies for tax credit - Optional thermal shield - Batimat event: medal for the Factory Spirit® design - 1, 2, or 3-point lock according to height of glide frame - Roller shutter adaptation possible - Dual-colour possible thanks to thermal bridge breaker bars - Available in all Profils Systèmes’ exclusive colours - Colour shades guaranteed up to 25 years Thermal Performances : - Uw = 1.4 Wm2K / Sw=0.44 double-glazed glide frame 2-leaf (WxH 2350 x 2180 mm) Design : Factory Spirit® straight cut design Weather tightness : AEV (air-water-wind) test result : A*3 – E*5B – V*C2 TECHNICAL DETAILS Fixed frame : - Hollow-section single piece fixed frame with built in external shutter pieces and architraves for 100 200mm wall infill thicknesses - Straight cut assembly - Thermal break by polyamide strip Glide frame : - Hollow-section side and centre members, available in simple or reinforced version depending on the dimension and exposure of the fixture - The transoms are designed for straight-cut assembly with screws - Thermal break by polyamide strip Glazing : Glazing thickness 24 or 28mm, glazing bead assembly with U-seal, rebate depth 18mm, seal compliant with french building regulation DTU 39 Locking : 1 to 3 locking points engaged by recessed latch or standard handle
