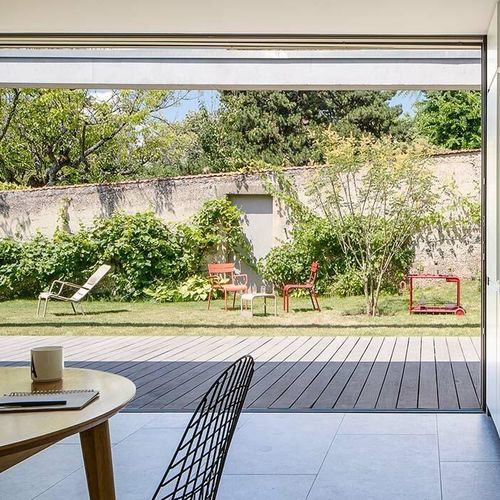

CUZCO® 712M series is the very latest generation of high energy performance aluminium sliding bays developed by Profils Systèmes.
Designed to enhance interiors, the minimalist 712M aluminium sliding bay is infinitely discreet with side and head jambs integrated into wall insulation.
Aluminium sightline is reduced to allow daylight and sunshine to flood in!
- Extra high frame: up to 3m
- Available in 2 leaves 1 rail, 3 and 4 leaves 2 rails
Thermal Performances :
- Uw=1.0 Wm2K | Sw=0.44 | Tlw=0.57 | Warmedge Ug=0.6 - Triple glazing frame 2 leaves French window (W2350 x H 2180mm) 32mm opening frame
- Uw=1.3 Wm2K | Sw=0.43 | Tlw=0.58 | Warmedge Ug=1.0 - 2 leaves double glazed French window frame (W2350 x H 2180mm)
- Uw=1.4 Wm2K | Sw=0.53 | Tlw=0.66 | Warmedge Ug=1.1 - 2 leaves double glazed French window frame (W2350 x H2180mm)
- Meets RT 2012
- Patented thermal shield
- FACTORY SPIRIT® design
- Reduced aluminium sightline
- Glazing up to 32mm
- High Energy Efficiency
- Solar gain optimised and excellent light transmission
- Extra large sizes: up to 3m high
- Maximum weight/leaf : 250 kg
- Available in all Profils Systèmes exclusive colours
- Colour hold guaranteed up to 25 years
