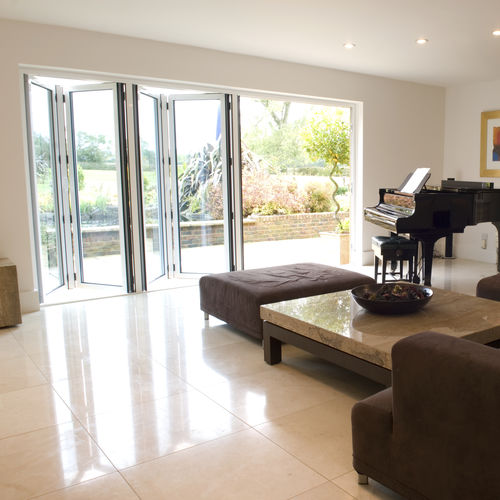

Folding patio door SATIN MOON®
aluminumdouble-glazedtriple-glazed

folding patio door
folding patio door
folding patio door
folding patio door
folding patio door
folding patio door
folding patio door
Add to favorites
Compare this product


Characteristics

Opening system
folding
Material
aluminum
Glazing
double-glazed, triple-glazed
Technical characteristics
security, thermal break, waterproof

Description

Joinery system for constructing self-supporting folding doors with thermal break, opening inwards or outwards. Highlights Reduced sill for disabled access Corner assembly possible Available in all Profils Syste?mes’ exclusive colours Colour shades guaranteed up to 25 years Design Factory Spirit® Straight cut Dimensions Max dimensions: 1 leaf WxH 1000 x 2500 mm Min width per leaf: 700mm Max weight per leaf : 100 kg Range Up to 8 leaves Inward or outward opening Weather tightness AEV Test results : A*4 – E*1050 – V*C 4 - 3 leaf door with fixed frame surround (dimensions WxH 2700x2114mm) Waterproof rating greater than 9 TECHNICAL DETAILS Fixed frame Hollow-section 80mm thickness, with clip-on architraves and offset shutter pieces possible for wall infill thickness compensation Wall infill thickness 100 to 200 mm Leaf Hollow-section, thickness74.5 mm Glazing Double or triple glazing or insulating door panel 26 to 32mm Rebate depth 22.2mm on fixed frame, 26mm on leaf. Seal compliant with French building regulation DTU 39 Locking Batten: 3-point bolt with lock and key Foldable section: top and bottom locking point
