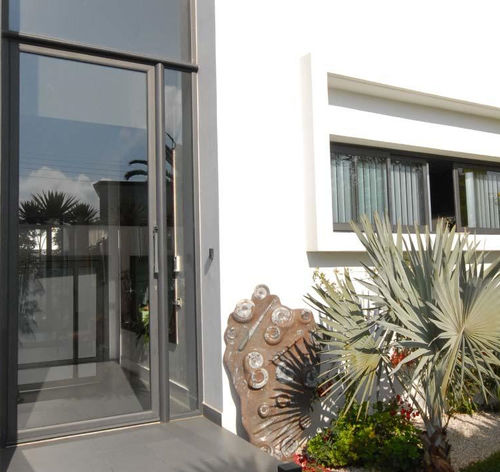

The DZAO® range is designed for the fabrication of traditional entrance doors with no thermal bridge break. Thanks to its stylish design and robust construction, it can be used as a front door,
French window or for any use in façade joinery.
Highlights
Tough and elegant
Made in France
NF Standard Profile
Multi-point automatic locking
Disabled access : waterproof sill
Panel or glazing from 6 to 30 mm
Excellent water resistance
Combined chassis can be incorporated
Simplied gaskets : saves time
Handle without base-plate available
Powder thermo-lacquering : no VOC waste
Colour shades guaranteed up to 25 years
Available in all Profils Systeèmes’ exclusive colours
Acoustic Performance
Glazing 38/23 : Ra, tr = 36 dB
Glazing 4/6/10 : Ra, tr = 35 dB
Weather tightness
Dimensions W1400 x H1400mm / Results AEV: A*4 - E*8A - V*C5
Dimensions W1300 x H2200mm / Results AEV: A*3 - E*9A - V*A5
Esthetics
Factory Spirit® : Straight, sleek lines on all fixed frames and opening sections
Classic® : Curved lines with a slight wave giving the profiles a modern aspect
Design® : Curved lines with a slight wave giving the profile its special character
Range
1 or 2 leaves
TECHNICAL DETAILS
Fixed Frame
Tubular 51mm fixed frame with clip-on weatherdrip available and jamb liners to cover insulation
Opening Section
Straight tubular opening section (Factory Spirit® version) inside and outside in 55 and 58,4 mm
Curved tubular opening section (Design® and Classic® version) inside and outside in 55 and 58,4 mm
Glazing
Single or insulated glazing from 6 to 30mm (50mm with expander) held by 2 EPDM joints and 1 clip-on glazing bead minimum 21mm high (base of groove).
