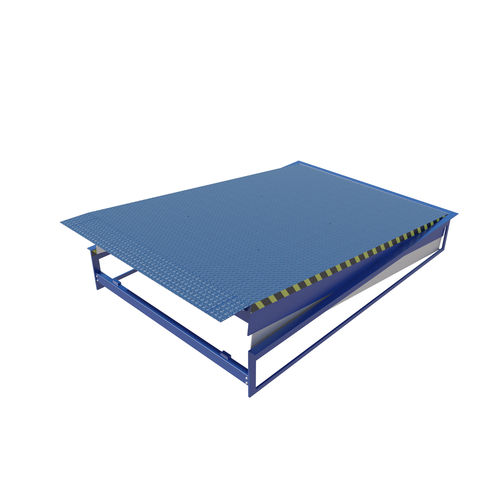

Hydraulic dock leveler PS

swing-lip

Our PS Hydraulic Dock Leveller with Swing Lip is a safe and efficient solution for busy loading bays where quick loading and unloading of standard-size trucks is necessary. Thanks to the robust swing lip, the gap between the vehicle and the building can safely be bridged while compensating for the height difference, even durning loading and unloading. Nominal lenght (NL) 1750, 2000, 2500, 3000, 3500, 4000, 4500 mm Nominal width (NW) 1750, 2000, 2100, 2200, 2250, 2400 mm Leveller heights (LH) 600, 700, 800, 900 mm Lip lenghts (LL) 400, 500 mm Rated load capacity 6 ton (60 kN) Operating ranges above the level (A) 0 – 620 mm Operating ranges below the level (B) 0 – 350 mm OPTIONS Fall-guard Anti-slip protective coating Lip tapered 125 mm Lip belleved 100 mm Lip 500 mm Top plate thickness 8/10 mm One piece platform surface PVC curtain for tail lift Hot-dip galvansing
