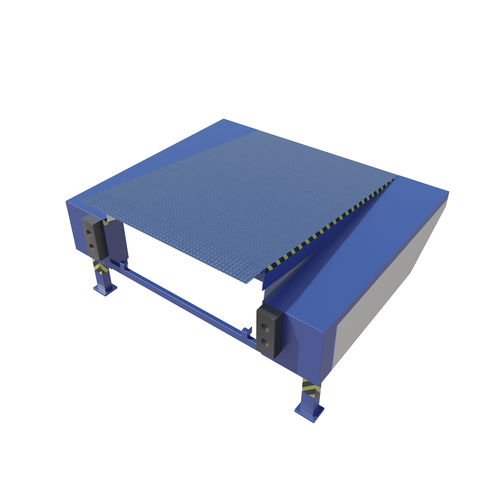

Hydraulic dock leveler PAS

swing-lip

The PAS Loading Ramp with Swing Lip Leveller is a combination of the PS Dock Leveller integrated into a self-supporting frame. With all the advantages of the PS Dock Leveller, the PAS Loading Ramp is a cost-effective solution to add a loading bay to an existing premises and to a maximise the internal storage space of the building. This loading ramp can be used with a loading house to make a complete loading bay solution. PARAMETERS Nominal lenghts (NL) 2000, 2450, 3000, 3500 mm Nominal width (NW) 2000, 2200 mm Leveller heights (LH) 700, 800 mm Lip lenghts (LL) 400, 500 mm Loading ramp module with (MW) 3300, 3500, 3600 mm Rated Load Capacity 6 ton (60 kN) Ramp height (RH) 950-1250 mm Operating ranges above the level (A) 0 – 410 mm Operating ranges below the level (B) 0 – 360 mm OPTIONS Fall-Guard Anti-slip protective coating Lip tapered 125 mm Lip bevelled 100 mm Lip 500 mm Top plate thickness 8/10 mm One piece platform surface PVC curtain for tail lift Hot-dip galvansing
