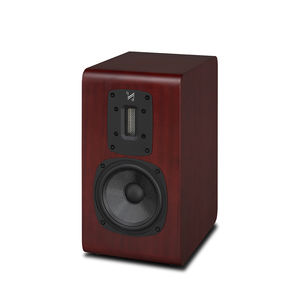

Shelf speaker S-1

residentialindoorKevlar®

Quad has always prided itself as providing the complete solution to music lovers. Each Quad component marries perfectly to other parts of the hi-fi system and is designed with one target – to be ‘The Closest Approach To The Original Sound’. Quad S Series loudspeakers fulfil that objective admirably. Sporting a new ribbon treble unit aligned, through sophisticated crossover networks, to Quad’s advanced bass-midrange drivers, each and every loudspeaker in the range delivers all the nuances and passion of the original performance. next Specifications General description2-way bookshelf speaker Enclosure typeVented box loudspeaker Transducer complement2-way Bass / Mid driver4"(100mm)woven Kevlar cone Treble driver12 x 45 mm True Ribbon AV shieldNo Sensitivity (2.83V @ 1m)84dB Recommended amplifier power25-150W Peak SPL105dB Nominal impedance8Ω Compatible Minimum impedance4.2Ω Frequency response (+/-3dB)58Hz ~ 20kHz Bass extension (-6dB)55Hz Crossover frequency3.2kHz Cabinet Volume (in litres)10.7L Dimensions (H x W D)285 x 156 x (240 + 30) mm Weight5.2kg
