Quad has always prided itself as providing the complete solution to music lovers. Each Quad component marries perfectly to other parts of the hi-fi system and is designed with one target – to be ‘The Closest Approach To The Original Sound’.
Quad S Series loudspeakers fulfil that objective admirably. Sporting a new ribbon treble unit aligned, through sophisticated crossover networks, to Quad’s advanced bass-midrange drivers, each and every loudspeaker in the range delivers all the nuances and passion of the original performance.
Specifications

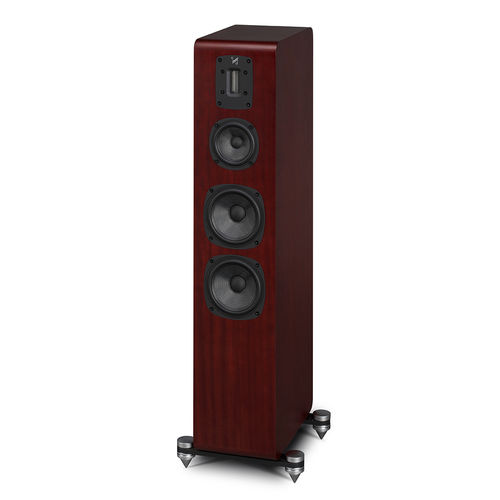

General description3-way floorstanding speaker
Enclosure typeABR
Transducer complement3-way
ABR125mmx2
Bass driver125mm Woven Carbon fibre Cone
Midrange driver100mm Woven Carbon Fibre Cone
AV shieldNo
Treble Driver12 x 45 mm True Ribbon
Sensitivity (2.83V @ 1m)88dB
Recommended amplifier power25-175W
Peak SPL110dB
Nominal impedance8Ω Cpmpatible
Minimum impedance3.5Ω
Frequency response (+/-3dB)44Hz ~ 23kHz
Bass extension (-6dB)37Hz
Crossover frequency520Hz & 3.9kHz
Cabinet Volume (in litres)47.0L
Dimensions (H x W x D)(870 + 55) x 180 x (300+30)mm
Weight20.5kg
