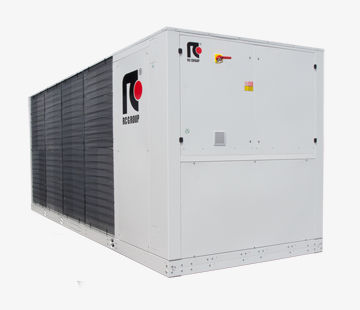

Air/water heat pump REVERSO SCREW.

commercialoutdoor

The machines are made with weather resistant materials and suitable for outdoor installation. Framework with sections of thick steel for high resistance to the greatest stress during handling and transport. Machines supply fully assembled with refrigerant charge and control systems. The installation requires electrical and hydraulic connections only allowing high costs and time reduction. Final assembly on all machines before shipment including running test, reading and monitoring of operating parameters, alarms simulation and visual check. SERIES IDENTIFICATION Machines equipped with condensing coils in vertical position, screw compressors, axial fans and shell and tube gas/water heat exchanger. Horizontal air suction and vertical discharge. REVERSO SCREW – Heat pump chillers. Cooling capacity 201 ÷ 1098 kW Heating capacity 233 ÷ 1307 kW Design, assembly and test as per the Company Quality Assurance program in full compliance with ISO 9001. RC Group has been the first Italian company in its segment to get the ISO 9001 in October 13th, 1991 with certificate ICIM 0018. The machines are in full compliance with European Directive 2006/42CE, 2006/95CE, 2004/108CE, 97/23CE and subsequent amendments.
