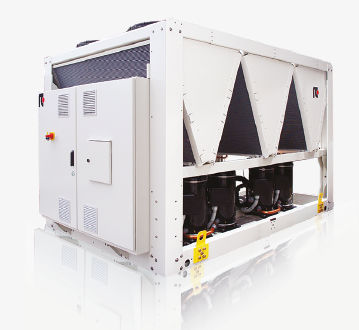

Air/water heat pump PYXIS HP.

commercialoutdoorreversible

MAIN FEATURES • Reversible heat pump. • 24 size available, for a wide selection opportunity. • Average step of 25kW. • EER up to 2,95. • COP up to 3,20. • ESEER up to 4,22. • Scroll compressors. • R410A Refrigerant charge. • Double, triple, quadruple refrigerant circuit. • Plate type or shell and tube heat exchangers. • AC Axial fans. • Double, triple, quadruple air circuit. • Suitable for outdoor installation. MAIN BENEFITS • Units equipped with two scroll compressors for refrigerant circuit to reach an high efficiency. • Units with double, triple, quadruple refrigerant circuits. • Units with separated air circuits to grant the continuity of the working mode during the coils defrosting. • Defrosting dynamics control system IDEA®. • Electronic expansion valve. • High COP. • Availability of coil heat exchangers with hydrophilic treatment. • Availability of kit for the reduction and the extreme reduction of the noise. • Availability of pumping groups with low, medium, high prevalence. • Extremely easily of maintenance. • Complete set of components dedicated to the safety of the unity. • Eurovent Certification. IDEA® DEFROSTING SYSTEM “Patented” defrosting system with dynamic reading of working parameters. Thanks to proprietary software it senses the real presence of brine on the coil starting defrosting cycles only in that situation. This brings a remarkable energy saving (more than 20-30% on the average) and a higher working continuity compared with traditional systems. WORKING LIMITS IN COOLING MODE Chilled water outlet temperature: -12÷20°C Ambient temperature: -10÷45°C WORKING LIMIT IN HEATING MODE (HEAT PUMP) Hot water outlet temperature: 30÷60°C
