Energy recovery ventilation unit REFLAIR 150/250balancedresidentialfor home
Add to favorites
Compare this product
Characteristics
- Type
- balanced, energy recovery
- Sector
- residential
- Applications
- for home, for apartments
- Energy class
- Class A
- Options
- compact, new generation
- Air flow
Max.: 250 m³/h
(8,828.7 ft³/h)Min.: 150 m³/h
(5,297.2 ft³/h)- Length
580 mm
(23 in)- Width
1,100 mm
(43 in)- Height
240 mm
(9 in)- Weight
22 kg
(48.502 lb)- Sound level
Max.: 50 dB
Min.: 45 dB
Description

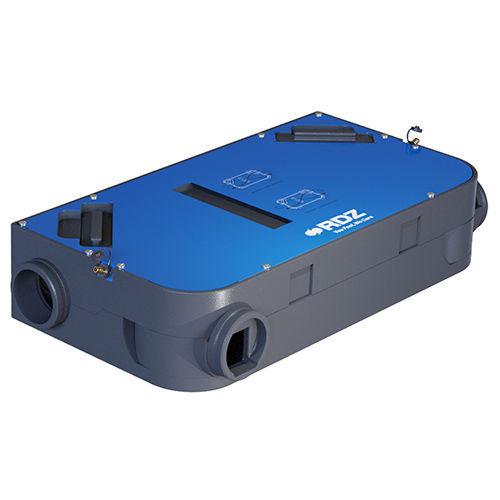

Balanced ventilation system with heat recovery features a steel and expanded polypropylene framework that is light, compact and delivers excellent thermal insulation performance.
Available in two sizes to treat different air volumes, Reflair features a high-efficiency (~90%) polystyrene heat exchenger, a constant-flow EC motor and ISO Coarse 65% (G4) filters. Adjustable connections and rotating fans simplify air distribution. Moreover, head loss and consumption are constant whatever the machine configuration. Reflair can be controlled with the Air Speed or the Air Control panels or integrated into the CoRe control system.
Catalogs
No catalogs are available for this product.
See all of RDZ S.p.A.‘s catalogs
