Protection waterproofing membrane SLIP

reinforcementfor roofroof

Product overview

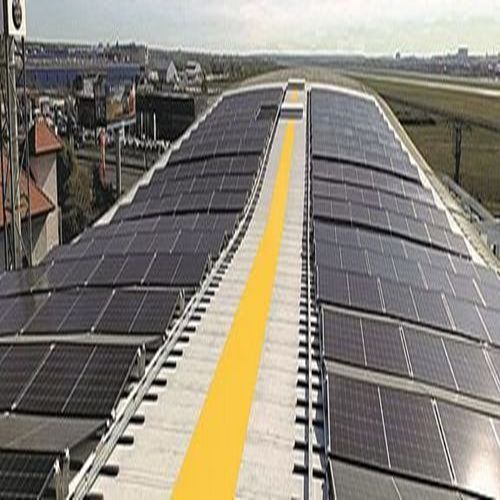

A flexible synthetic PVC roofing membrane with polyester scrim reinforcement and a textured anti-slip surface. Designed to create slip-resistant walkways for maintenance of new or existing flat and pitched roofs, photovoltaic panels, emergency access routes and lifelines.

Key performance and certification

• Pendulum test value (PTV) > 36 (DIN EN 16165, Annex C, slider 96, wet)
• Slip classification R13 (DIN EN 16165, Annex B) — suitable for roofs up to 35°
• Product certification: EN 13956 0749-CPR-BC2-320-01452-0001-01

Product identity / model
RENOLIT ALKORPLAN D 35w76 is the designated walkway product for creating slip-resistant access routes on RENOLIT ALKORPLAN waterproofing systems.

Installation
The membrane is installed by hot-air welding along the perimeter to the underlying waterproofing membrane. It can be applied on new or existing waterproofing and retrofitted for photovoltaic installations.

Documentation (available)

• Technical Data Sheet (English)
• Declaration of Performance (DoP) (English)

Recommended for

• Slip-resistant walkways for roof maintenance
• Protection of the waterproofing from mechanical damage
• Maintenance access for photovoltaic panels
• Emergency access routes and lifelines

Technical characteristics / specifications

• Material: Flexible synthetic PVC roofing membrane with polyester scrim reinforcement and textured surface
• Thickness: 2.0 mm
• Width: 82.5 cm
• Roll length: 20 m
• Roll weight: approx. 41 kg
• Packaging / Product code: RENOLIT ALKORPLAN D 35w76-01
• Colour: Yellow
• Pendulum test value (PTV): > 36 (DIN EN 16165, Annex C, slider 96, wet)
• Slip classification: R13 (DIN EN 16165, Annex B) — suitable for roofs up to 35°
• Certificates: EN 13956 0749-CPR-BC2-320-01452-0001-01
