Roller blinds Fixvent Mono UT

boxed rollerfor windowPVC

Product description

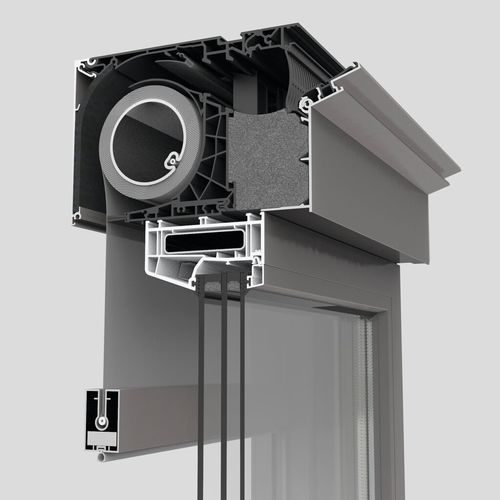

Fixvent Mono UT is a compact exterior ventilated sunshade that integrates windproof sun protection, insect screening and controlled ventilation. It mounts quickly on window frames with depths of 50–215 mm and its patented Connect&Go and Click&Safe systems enable fast and secure (dis)mounting of the roller tube. Fixscreen-technology keeps the fabric taut and windproof up to 130 km/h, while Smooth-technology applies a wear-resistant coating to the PVC inner rails for smooth fabric travel. Designed to pair visually and functionally with the Fixscreen Mono AK, Fixvent Mono UT combines sun protection and insect screening in a single element.

Product advantages

• Integrated ventilation and solar protection for occupied non-residential spaces
• Simple installation on window frame depths 50–215 mm
• Windproof performance up to 130 km/h (Fixscreen-technology)
• Quick (dis)mounting with patented Connect&Go and Click&Safe systems

Technical specifications
Height of case (mm): 132
Maximum area (m²): 12
Maximum area (joined) (m²): 18
Maximum screen height (mm): 3000
Maximum screen width (mm): 4000
Minimum screen height (mm): 300
Minimum screen width (mm): 675

Technical features

• Suitable for window frame depths: 50–215 mm
• Windproof fabric up to 130 km/h (Fixscreen-technology)
• Smooth-technology: wear-resistant coating on PVC inner rails for smooth fabric movement
• Patented Connect&Go and Click&Safe technologies for easy and secure (dis)mounting
• Self-regulating valve activating at 10 Pa to maintain basic ventilation
• Specifically developed for non-residential buildings where natural supply and mechanical extraction of fresh air are in the same room
