Aluminum solar shading TOPFIX LARGE

cast aluminumacrylicmade from recycled materials

Product description

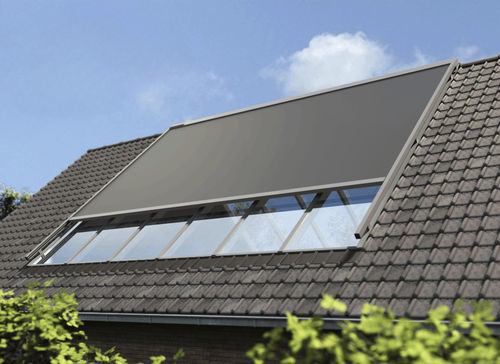

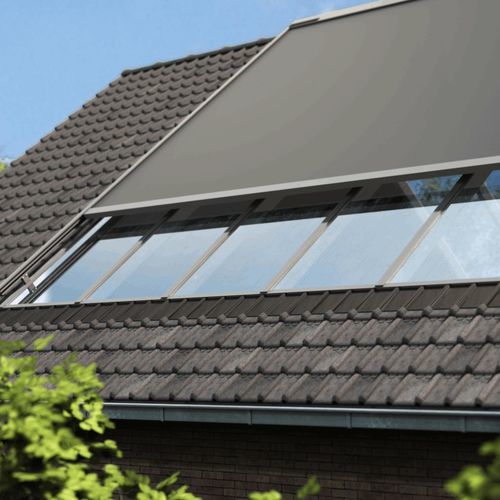

Topfix Large is a modular external solar shading system designed for architectural integration. It combines a slim contemporary profile with material‑efficient construction and enhanced durability. The system supports multiple mounting situations, operates on mains or battery power, and is compatible with polyester and acrylic fabrics. Using low‑CO₂ aluminium and cast components made from upcycled material, the product follows circular design principles.

Installation and maintenance
Installation is optimized for speed and precision thanks to click‑on, adjustable mounting feet. The single‑band concept enables quick and easy service interventions. The optimized construction allows spans up to 30 m², with up to 35% weight reduction versus Topfix Max, and compact component dimensions (box 150×195 mm, guides 60×75 mm, bottom bar 100×62 mm).

Product advantages

• Windproof sun protection
• Comprehensive warranty terms and conditions
• Smooth, silent and durable operation
• Revolutionary fabric tensioning
• Dimensions available up to 30 m²
• Compact headbox dimensions
• Designed for circularity: low‑CO₂ aluminium & upcycled cast parts

Downloads

• Leaflet (PDF)
• Specification text (DOCX)
• Technical drawing (ZIP)

Technical specifications

• Alignment: Horizontal
• CE certified: Yes
• Control: Electric
• Sun protection controls: MSio, MSR, MSM
• Depth of case (mm): 195
• Height of case (mm): 150
• Maximum area (m²): 30
• Product guarantee (years): 5
• Fix screen technology warranty (years): 5
• Guaranteed wind resistance in closed position (km/h): 120
• Type of window: Skylight, veranda skylights, horizontal window
• Component dimensions (examples): box 150×195 mm; guides 60×75 mm; bottom bar 100×62 mm
