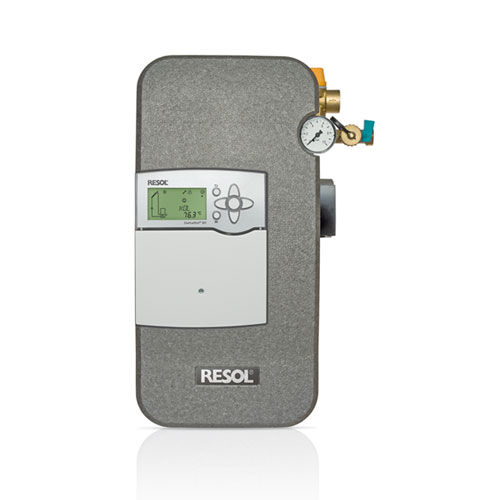

Pump station FLOWSOL® B

The FlowSol® B is a pre-assembled twin-line pump station and contains all the vital hydraulic components for operating a solar thermal system and is particularly easy to install. The pump station is available in many combinations with three different controller series and two different pump variants. Integrated controller of choice from the DeltaSol® BX, DeltaSol® BS, DeltaSol® C series or DeltaSol® SL Design insulation casing Integrated standard pump Fill and drain valves Safety assembly with connection for the diaphragm-type expansion vessel, safety valve and pressure gauge Wall mounting bracket with mounting material Especially suited for the pump station: our accessories such as the ALS15 discharge hose, the SBS 2000 filling and flushing station, etc. Circulation pump: Wilo ST 15/6 ECO, 15/7 ECO (surcharge) Safety valve: 6 bar Pressure gauge: 0 ... 10 bar Flowmeter: 1 ... 13 l/min Non-return valves: opening pressure 20 mbar, openable Connection to diaphragm-type expansion vessel: 3/4" ET, flat sealing Outlet safety valve: 3/4" IT Connections to the solar pipes: 3/4" IT Maximum temperature flow/return: 120 °C/95 °C Maximum pressure: 6 bar Fluid: water with max. 50 % glycol Dimensions: approx. 481 × 320 × 190 mm (with insulation) distance centres: 100 mm distance centre/wall: 67 mm Material: fittings: brass sealings: EPDM/AFM 34 insulation: EPP foam Flow rate: 1 ... 10 l/min Non-return valve: 200 mm head, openable
