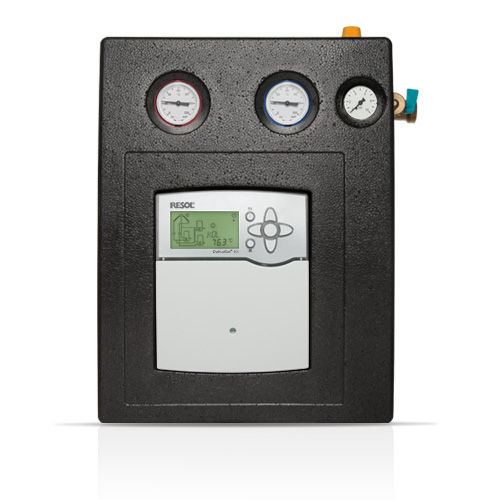

Pump station FLOWSOL® XL

The FlowSol® XL is a pre-assembled twin-line pump station especially developed for systems with high flow rates. Equipment and nominal width are designed to meet the demands of large collector fields. Pre-assembled twin-line pump station Integrated DeltaSol® BX Plus controller Energy-saving high-efficiency pump Safety assembly with connection for the diaphragm-type expansion vessel, safety valve and pressure gauge Ball valves with non-return valves in flow and return Flowmeter Air separator with manual air vent for the solar thermal system Fill and drain valves Especially suited for the pump station: our accessories such as the ALS15 discharge hose, the SBS 2000 filling and flushing station, etc. Circulation pump: Wilo Stratos PARA 15/1-9 (ErP power consumption of the pump*: 44 W) Safety valve: 6 bar Pressure gauge: 0 ... 10 bar Flowmeter: 5 ... 35 l/min For low-flow systems (0.2 l/min/m²) with collector fields of up to 100 m² For high-flow systems (0.5 l/min/m²) with collector fields of up to 50 m² Take the pressure loss of the system into account! Ball valves in flow and return with non-return valves and thermometer handles: Non-return valves: Opening pressure 20 mbar, openable Thermometer: 0 ... 160 °C Connection to diaphragm-type expansion vessel: 1'' ET, flat sealing Outlet safety valve: 1" IT Connections to the solar pipes: 1" IT Maximum temperature flow/return: 120 °C / 95 °C Maximum pressure: 6 bar Fluid: water with max. 50 % glycol Dimensions: approx. 470 x 380 x 220 mm (with insulation) Distance centres: 125 mm Distance centre / wall: 73 mm Material: fittings: brass seals: AFM 34 O-ring: FKM insulation: EPP foam
