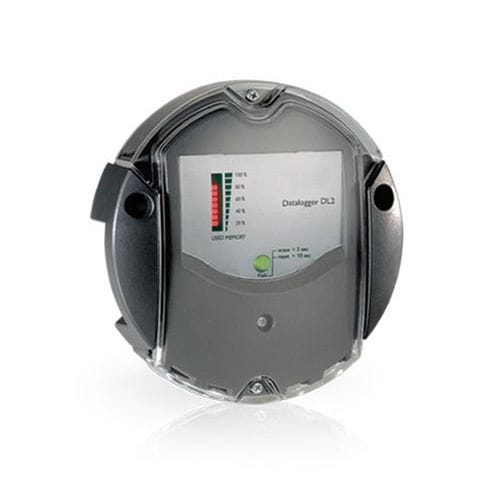

Data logger DL2

Remote access to the controller and integrated data logging The DL2 Datalogger is the interface between a RESOL controller and the Internet and additionally permits logging of system data. The DL2 enables the access to the system data via www.VBus.net. Remote access to the system via the VBus.net visualisation portal Comfortable system parameterisation via the RESOL RPT Parameterisation Tool Internal memory for datalogging Data transfer via SD card Firmware updates via Internet or SD card Suitable for all RESOL controllers with VBus® Power supply: input voltage of mains adapter: 100 ... 240 V~ (50 ... 60 Hz) rated current: 350 mA input voltage of datalogger: 5V DC ± 5 % Data interface: VBus® for the connection to the controller, LAN Housing: plastic, PC-ABS and PMMA Mounting: wall mounting Indication/Display: bar LED for monitoring the memory capacity, 1 illuminated pushbutton for indication of the SD card status Ingress protection: IP 20 / IEC 60529 Protection class: III Ambient temperature: 0 ... 40 °C Dimensions: Ø 130 mm, depth 45 mm Memory: 160 MB internal memory, with a logging interval of 5 min. sufficient for: • 18 months for a system with one DeltaSol® MX, 3 EM, 3 heating circuits and 1 HQM • 21 months for a system with one DeltaSol® MX, 1 EM and 1 heating circuit • 30 months for a system with one DeltaSol® MX
