Construction panel PERFORATION

buildingwalllight

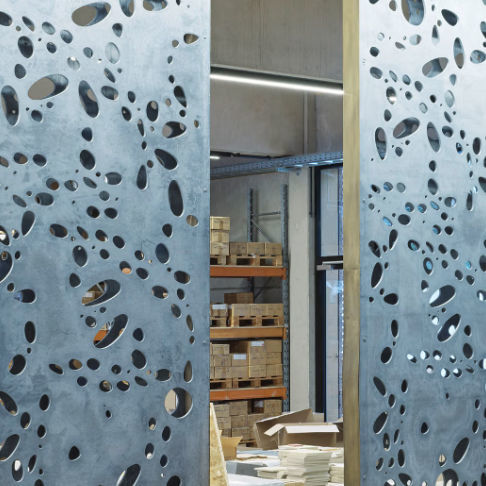

Small gaps in the large glassfibre reinforced concrete panels create a partial view of the surroundings. This results in an interesting interplay between transparency and cladding. Appropriate lighting or solar radiation creates an interesting interaction between light and shade in the direct surroundings. Perforated panels can be used in a variety of ways – as a partition, sun protection or design element. Size max. 1510 x 5000 mm Thickness 13 mm Surface matt, ferro light, ferro; solo (interior only) Back (invisible side) untreated ferro Colour collections greyscale, timber, bricky, pietra Textures available on request FIXING Mounting manually or with vacuum suction; handling of the panel with special care; depending on the hole percentage, a transport frame may be required Visible rivet, screw (on wooden supporting structure)1 : distance to slat edge at least 30 mm Concealed undercut anchor: vertical distance to the edge of the panel min. 60 mm, additional supporting structure or bracing may be necessary, depending on structural calculation PERFORATION Perforation type any type and pattern Hole percentage max. 30% (review of statics is required) Hole diameter min. 6 mm Perforation angle 45° to 90° Cutting width min. 1.5 mm Distance between perforations must be checked individually (depending on perforation size, shape and hole percentage) Important! Check for each specific project: → Structural system calculation → Technical feasibility → Hole percentage or hole distribution → Climbing protection → Fall protection → Burglary protection → Installation options → Handling
