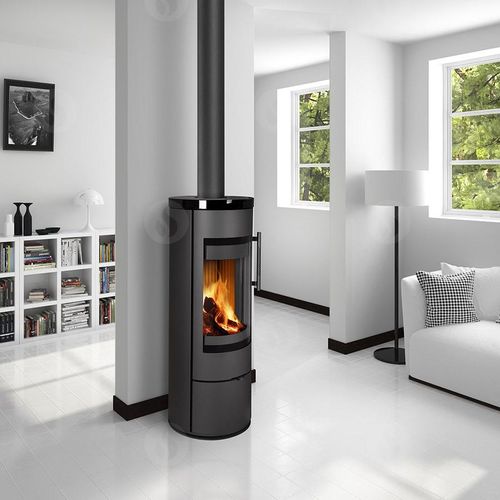

Wood heating stove ALEA 01 A
0 - 5 kW5 kW...10 kWfree-standing

wood heating stove
wood heating stove
wood heating stove
wood heating stove
wood heating stove
wood heating stove
wood heating stove
wood heating stove
Add to favorites
Compare this product


Characteristics

Power source
wood
Nominal heat output
0 - 5 kW, 5 kW...10 kW
Installation
free-standing
Style
contemporary
Material
metal, glass
Certifications
Class A+
Color
black
Flue outlet
with vertical outlet
Other characteristics
ventilated, rotating
Height

1,243 mm, 1,305 mm (49 in)

Width

468 mm (18 in)

Depth

468 mm (18 in)

Description

The elegant, slim shape of the ALEA fireplace stove is a perfect match for every interior. The rotating combustion chamber means you won’t be restricted to watching the beautiful living flames from just a single angle. This fireplace stove is suitable for low-energy homes. An EAI (External Air Intake) system is included. The ventilated designer handle permits use when the stove is lit. The door can be locked in the open position. The standard version includes the option to connect an upper or rear flue gas exhaust. Thanks to the secondary air intake, the door glass is air-washed to prevent the cumulation of soot. The combustion chamber is lined with chamotte brick tiles. The primary and secondary air intakes are regulated by a single control element. The rotating combustion chamber allows you to view your fire from multiple angles. Technical parameters Height 1584 mm Width 468 mm Depth 468 mm Weight 158 kg Regulated output 2,9-7,4 kW Smoke flue diameter 150 mm Flue socket diameter 150 mm External air intake diameter 125 mm Axis height of rear outlet 1129.5/1376.5 mm Draught 11 Pa Efficiency 82,9 % Average wood consumption 1,6 kg/h Technical parameters Height 1584 mm Width 468 mm Depth 468 mm Weight 164 kg Regulated output 2,9-7,4 kW Smoke flue diameter 150 mm Flue socket diameter 150 mm External air intake diameter 125 mm Axis height of rear outlet 1129.5/1376.5 mm Draught 11 Pa Efficiency 82,9 % Average wood consumption 1,6 kg/h Technical parameters Height 1522 mm Width 468 mm Depth 468 mm Weight 161 kg
