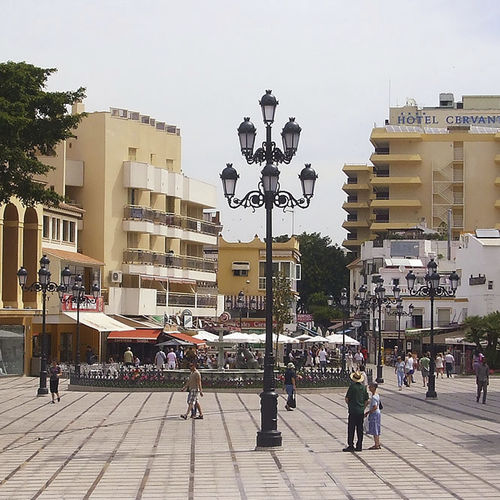

Urban lamp post STIL LRA-65

traditionalaluminumstainless steel

DESCRIPTION Decorative lantern made of upper and lower embellishments as well as semi-crown in injected aluminium. Upper dome made in spun aluminium. Down-bars made in die-cast aluminium link socket and semi-crown. Socket with embellishment is made in die-cast aluminium. Suspended clamping with 3/4''Gx25mm thread or vertical clamping through socket. Difusser options: without diffuser, with transparent diffuser or frosted diffuser made of high impact resistance methacrylate that dims the effect of LED light and created a softer light similar to that of antique luminaires. Led driver clamped on metallic tray. Secure closing by a non-loosening bolt in stainless steel. Auxiliary bolts made in stainless steel. Finished with polyester powder coating in black forge. Other colours on demand. IP-66, optical group. IK-10, optical group. Working ambient temperature -30ºC to +50ºC. ELECTRICAL FEATURES From 10W to 75W by adjusting the output current through driver programming. Class I. Average life: L80 B10>100.000h Constant current driver, programmable to fit the most suitable working parameters according to project requirements. DALI / 1-10V / Time Dimmer / Mains reduction. Up to 24 LED (programmable power from 10 to 75W) mounted on a PCB with an electronic circuit. Electronic design for a short-circuiting condition between anode and cathode in case of LED failure, ensuring the performance of the remaining LEDs. PCB board fixed internally on the bottom side of the aluminium module. The heat sinker, made of aluminium fins, is located on the upper side of this module for optimal heat dissipation.
