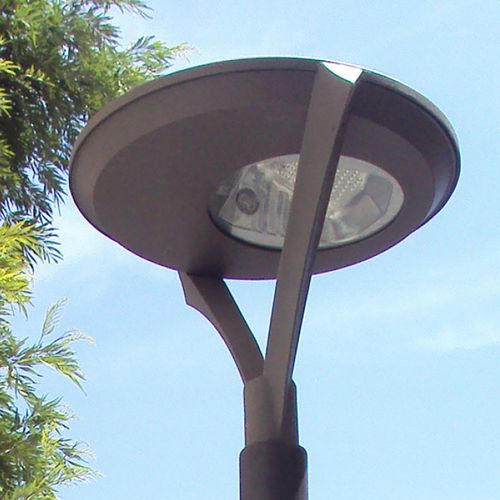

Lantern made upper and lower housing in injected aluminium.
Bracket made in cast aluminium (Ø60mm) to clamp the luminaire to the desired support.
Manual lever locking system made in injected aluminium combined with stainless steel elements.
Hinge and safety bar that keeps the lantern open during maintenance operations.
Hinge guarantees opening at an angle of 70º and avoids accidental closing.
Optical group support tray to fix it to the luminaire body.
Polyamide 66 + fiberglass frame for driver clamping.
Finished with polyester powder coating RAL 9007. Other colours on demand.
IP-66.
IK-10.
Working ambient temperature -30ºC to +50ºC.
