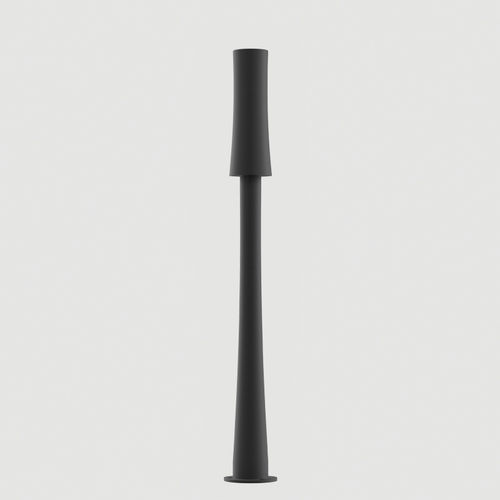

Urban lamp post DAMA II

contemporaryanodized aluminumPMMA

Overvoltage protection Increases the immunity of the luminaire to electrical discharges up to 15 pulses at 10 kV Anodized aluminium body inox / black color with anticorrosive and decorative properties Driver Highly efficient and programmable constant current power driver with 7 programmable functions according to customer requirements Optical system Colour temperature (CCT) 2700K, 3500K, 4000K and 5000K Lampdiffusser made of polymethyl methacrylate (PMMA) Application 1. Office building surroundings 2. Urban infrastructure 3. Squares and green areas 4. Pedestrian ways 5. Shopping avenues Application: surrounding office buildings, parks, pedestrians Assembly: — Ingress protection: IP 65 for the optical part and the driver Material: anodised aluminium alloy Colour: — Optical system: — Number of LEDs: 6 for 8W Expected useful lifetime: L90F10 – 50 000h, L80F20 – 100 000h CRI: >80 for 2700K, 3500K; >70 for 4000K, 5000K Input voltage frequency: 50 - 60Hz Power factor: ≥0.9 Inrush current: : for 8W
