Contemporary light column KARIN EV

anodized aluminumLEDoutdoor

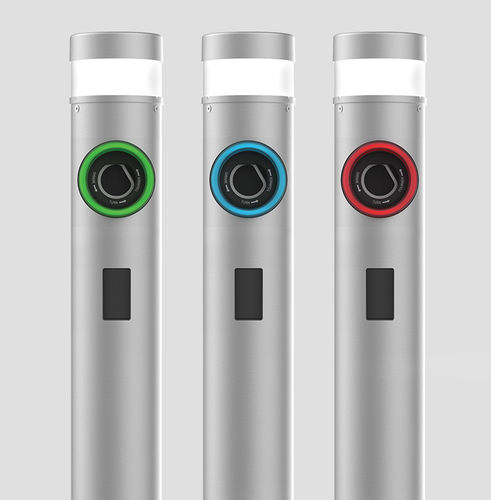

The possibility of integration with the billing system Open OCPP v.1.6 protocol Communication 3G or Ethernet LED module Light temperature 5000K, 4000K or 3500K. Frosted diffuser made of PMMA Charger status indication - RGB module green colour - charging point is available blue colour - charging point is busy red colour - charging point is inactive Anodised aluminum body Available in 10 colours, each with possibility of chemical brightening with anti-corrosive and decorative properties Application: parking lots in public spaces, office buildings surrounding, shopping centers, hotels and restaurant, private properties, highway rest areas Ingress protection: IP 65 for the optical part and the driver Material: anodised aluminium alloy Number of LEDs: 8 Expected useful lifetime: L90F10 – 50 000 h, L80F20 – 100000 h CRI: >80 for 2700K, 3500K; >70 for 4000K, 5000K Input voltage frequency: 50 - 60Hz Diffuser: frosted made of polymethyl methacrylate (PMMA) Charging point rated powers: 3,7 kW | 7,4 kW | 11 kW | 22 kW Charging socket: IEC62196 Type-2 Types of protection: Over-current circuit breaker and RCD type A (optionally RCD type B or RCD type EV) The protection degree of electrical chamber: IP 54 Communication: 3G, LAN Power cables: up to 16 mm2 Al / Cu Electricity measurement: Electricity meter compatibile with the MID directive Network layout: TT, TN-S, TNC-S The possibility of integration with the operator's system:: OCPP v.1.6 Standard for charging stations: EN 61854-1:2011
