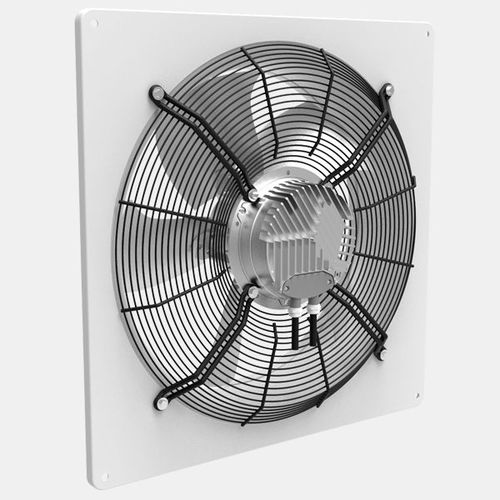

Axial fan GQ
ductcommercialsteel

axial fan
axial fan
axial fan
Add to favorites
Compare this product


Characteristics

Type
axial
Installation
duct
Sector
commercial
Material
steel
Location
indoor
Color
white
Air flow

Max.: 33,000 m³/h
(1,165,384 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Description

size: 200 - 1000 mm (impeller diameter) highly efficient EC technology small depth sickle formed profiled impellers integrated control system (EC controller) speed is 100% infinitely variable The casings of the EC axial fans are manufactured from galvanised sheet steel with white powder plastic coating and protection guard with black powder plastic coating. The EC axial fans have aerodynamically shaped blades: size 200 made of plastic size from 250 to 400 made of black painted and galvanised steel sheet size from 450 to 1000 made of aluminium The electrical connection can be made at the motor size G9, V8, GD84 and GD112 (230V) via lead out connection cable and for the motor size GD112 (400V) and GD150 directly via cable gland at the integrated terminal box of the motor. The integrated motor protection is signaled via alarm relays at size 350 to 1000. For the size 200 to 300 a tachometer output is available. In the version „open-loop control“(standard) the speed is adjustable via 0-10V Signal or a potentiometer (optional).
