flow rates up to 36,000 m³/h
size: 310 - 900 mm (impeller diameter)
vertical outlet
IEC standard motors as drive
suitable for higher conveying temperatures
backward curved impellers
different models
solid weatherproof casing
easy to install

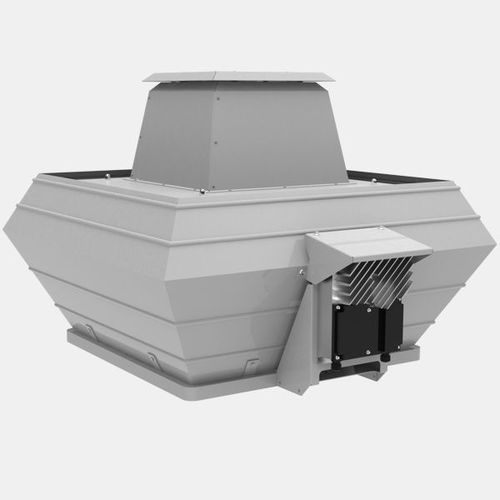

DVNF with integrated frequency converter
The casing of the Rosenberg roof fans (DVNF/S, DVN/S) consists of seawater-resistant aluminium and a base frame with integrated inlet cone.
model - DVNF/DVN
up to size 500: Base frame with integrated inlet cone made of galvanised sheet steel
from size 560: Base frame with integrated inlet cone made of galvanised sheet steel and additional plastic coating
model - DVNFS/DVNS
Casing with integrated sound insulation (S) ; base frame with integrated inlet cone made of galvanised sheet steel and additional plastic coating
up to size 500: Base frame with integrated inlet cone made of galvanised sheet steel
from size 560: Base frame with integrated inlet cone made of galvanised sheet steel and additional plastic coating
Efficiency-optimised high performance impellers with backward curved blades made of aluminium. The impellers together with the impeller hub are dynamically balanced on two levels with the rotor according to quality level G 2,5 / G 6,3 as per DIN ISO 21940-11. The impellers are mounted overhung on the shaft of an IEC standard motor type B5.
model - DVNF/DVNFS
The electrical connection is mounted on the housing by a frequency converter. With model -GS the electrical connection mounted directly by the ON/Off-switch.
model - DVN/DVNS
The wiring box of the motor is easily accessible.
