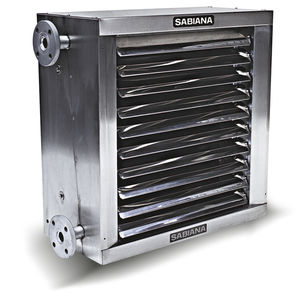

Hot water air heater JETSTREAM

wall-mountedceiling-mounted

The Atlas unit heaters can be supplied with the innovative Jetstream induction flow optimiser, in the manual version or the motorised version for wall-hung or ceiling installation. The lower outlet temperature of the air from the appliances means less stratification of the hot air in the building and less appliance operating time for the same ambient temperature. In addition, the increased air throw means greater uniformity of the temperature at floor level, with an expansion of the comfort zone, and consequently the possibility to install smaller and more silent appliances. The use of the JETSTREAM induction flow optimizer has the following advantages: a) Energy saving: – reduced hot air stratification within the building. – reduced operating time of the units with the same ambient temperature. Energy saving varies between a minimum of 5% and a maximum of 15%, with maximum amortization in two seasons. b) Environment comfort advantages: – increased floor-temperature uniformity with greater comfort area. – possibility to install smaller and quieter units, due to the increase of the throw. Four versions are available: • Manual for wall installation (all sizes) • Manual for ceiling installation (all sizes) • Motorized for wall installation (sizes 1÷7 only) • Motorized for ceiling installation (all sizes) The manually controlled version calls for manual orientation of the fins and for them to be locked using a special threaded rod. The motorized version is supplied with single phase motor that can be controlled by the remote switch.
