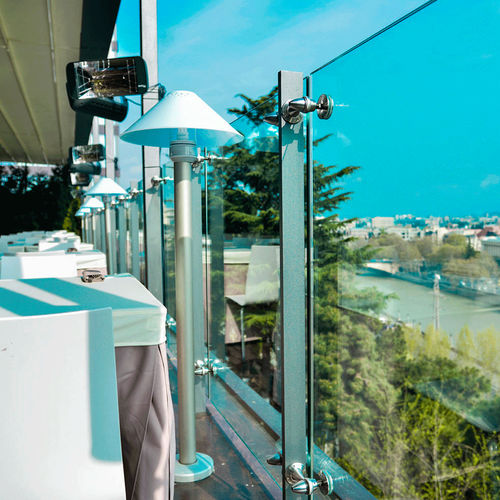

Glass railing FIN MONTI

stainless steelglass paneloutdoor

Pole with fine mounting bracket Glass railing for balcony, staircase, porch house, espace public… Design system with glass adjustment (horizontal) Tested under test reports Post dimensions: 60 x 15 mm Standard in 304 stainless steel – available in 316 stainless steel or painted steel for posts Validated glass dimensions: 1 000 and 1 200 mm : thickness 6.6 1 400 mm : thickness 8.8 Type of application Private Public Type of installation Floor Performance 2kN 1kN Finishing Double post fixation Single fixing : Post / Glass Single fixing : Wall / Glass Type of application Private Public Balustrade with Flat 60 x 15 railing with Fin Monti Want a designed glass balustrade? This railing is made of a 60 x 15 mm flat post and Fin Monti glass connectors. The post can either be in 220 brushed stainless steel or in painted steel. This system can bear a weight up to 150kg. Many adjustments for an easy installation. This railing has an original design, making your installation unique thanks to the Fin Monti fittings designed by the italian Cesare Monti. Tests have been achieved and passed to install this railing in public spaces using a 6.6/4 glass thickness (glass panels length from 1000 to 1200 mm) and a 8.8/4 thickness with a glass panel length of 1400 mm. Technical features: Design system including installed glass adjustment Public and private applications Certified by CEBTP Easy to install Glass dimensions approved : 1 000 and 1 200 mm : glass thickness 6.6 1 400 mm : glass thickness 8.8 Standard in 304 stainless steel, available in 316 or painted steel for the posts.
