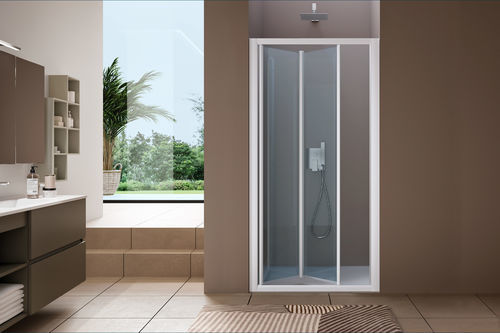

Folding shower screen AMERICA QUATTRO

tempered glassclear glassfrosted glass

Description
Folding shower screen with two panels that fold inward. The panels open toward the inside. Model suited to situations requiring a wide entrance while keeping a limited installation footprint.

Profiles

• Matte black L96
• Matte white L91
• Polished bright ULU

Tempered glass panels

• Patterned glass ST
• Frosted glass AS
• Clear glass TR

Available documents (file names)

• Assembly instructions (PDF)
• Spare parts America Quattro (PDF)
• 3D files for designer (ZIP)
• Product sheet_Samo 80 (PDF)

Photo gallery (image labels)

• L91_AS
• L91_ST
• L91_TR
• L96_TR
• L96_ST
• L96_AS

Dimensions
Door
Article | Extensibility [cm] | Opening [cm]
B6461 | 66-74 | 36
B6463 | 76-84 | 46
B6465 | 86-94 | 56
B6467 | 96-104 | 66

Fixed wall
Article | Extensibility [cm] | Opening [cm]
B6421 | 63-67 | //
B6422 | 67-71 | //
B6424 | 73-77 | //
B6425 | 77-81 | //
B6427 | 83-87 | //
B6428 | 87-91 | //
B6429 | 97-101 | //

Characteristics / Technical specifications

• Type: Folding shower door with two panels opening inward
• Suitable for wide entrances with limited installation space
• Available profiles: Matte black (L96), Matte white (L91), Polished bright (ULU)
• Tempered glass panels: Patterned (ST), Frosted (AS), Clear (TR)
• Measurements and article codes available (see measurements list): items B6461, B6463, B6465, B6467 for the door; items B6421, B6422, B6424, B6425, B6427, B6428, B6429 for the fixed wall
• Documentation available: assembly instructions, spare parts list, product sheet and 3D files for designer
