Sliding shower screen AMERICA QUATTRO

fixedcurvedsquare

Presentation

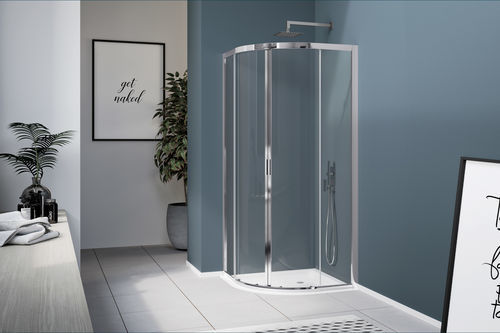

Curved shower wall available in corner installation versions in square sizes. The model features four panels, with the two central ones opening.

Profiles

• Matte black "L96"
• Matte white "L91"
• Polished bright "ULU"

Tempered glass panels

• Patterned glass "ST"
• Frosted glass "AS"
• Clear glass "TR"

Photo gallery
AmericaQuattro-Tondo-scorrevole-a-quattro-ante; ULU_TR; L96_TR; L91_TR

Available documents

• Assembly instructions (PDF)
• America Quattro spare parts (PDF)

Dimensions
Door
Item | Adjustability [cm] | Opening [cm]
B6470 | 71.5-75.5 | 41
B6473 | 76-80 | 38
B6471 | 86-90 | 52

Fixed wall
Item | Adjustability [cm] | Opening [cm]
B6421 | 63-67 | //
B6422 | 67-71 | //
B6424 | 73-77 | //
B6425 | 77-81 | //
B6427 | 83-87 | //
B6428 | 87-91 | //
B6429 | 97-101 | //

Features / technical specifications

• Type: Curved shower wall, double sliding door with four panels (two central opening)
• Installation: corner installation versions, square sizes
• Profiles: Matte black "L96", Matte white "L91", Polished bright "ULU"
• Panels: tempered glass (Patterned glass "ST", Frosted glass "AS", Clear glass "TR")
• Door items: B6470 (adjustability 71.5-75.5 cm, opening 41 cm), B6473 (76-80 cm, opening 38 cm), B6471 (86-90 cm, opening 52 cm)
• Fixed wall items: B6421 (63-67 cm), B6422 (67-71 cm), B6424 (73-77 cm), B6425 (77-81 cm), B6427 (83-87 cm), B6428 (87-91 cm), B6429 (97-101 cm)
• Tempered glass used for the panels
