Variable geometry diffusers are suitable for locations that require frequent changes in the type of air supply, as they allow horizontal, inclined and vertical discharge by means of the movement of their blades.Their capacity to move large volumes of air makes them suitable for installations in airports, industrial warehouses and in general all those high enclosures.

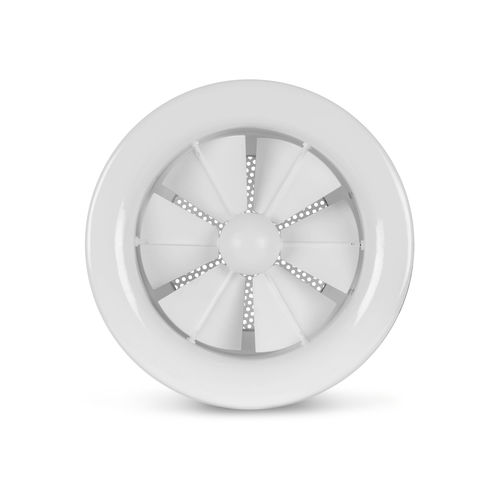

Model DGV. Circular diffuser of variable geometry with movable blades of simultaneous manual adjustment.
Model DGV-P. Circular diffuser of variable geometry with movable blades of simultaneous manual adjustment. Square plate.
Allows for an opening from 0º to 90º.
Made of aluminium with movable nylon blades. Provided with equalizer plate. Standard finish white lacquer RAL 9010.
Operation:
(MA) Manual
(MS) Built-in servomotor
