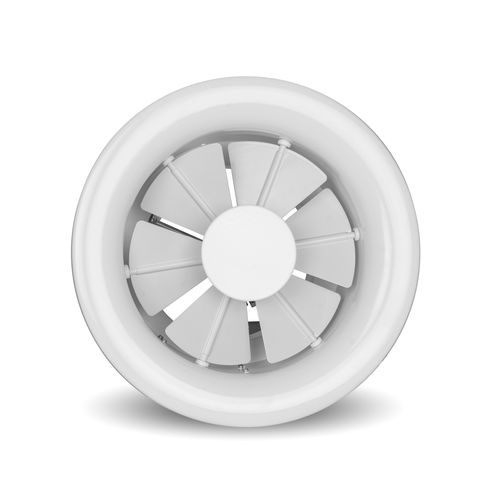

Ceiling air diffuser DGV-T

roundsteelaluminium

Variable geometry diffusers are suitable for locations that require frequent changes in the type of air supply, as they allow horizontal, inclined and vertical discharge by means of the movement of their blades.Their capacity to move large volumes of air makes them suitable for installations in airports, industrial warehouses and in general all those high enclosures. Model DGV-T. Variable geometry diffuser with thermostatic actuator. Model DGV-TP. Variable geometry diffuser with thermostatic actuator. Square plate. The DGV-T diffuser is characterised by the automatic regulation of its blades by means of a thermostatic actuator, due to the thermal memory effect of the Nickel-Titanium alloy. The regulation of the angle of deflection is very simple and intuitive by means of mechanical stops assisted by a colour scale. The colour of the graduated scale indicates the angle of the blades in the two conditioning positions (heating - cooling), red for the heating conditions and blue for the cooling conditions. When the supply air is hot (heating condition), the actuator will move the flow vertically. Conversely, when the supply air is cold (cooling condition), the actuator will move the flow horizontally, following the previously established angle of deflection. The DGV-T diffuser does not need to be pre-adjusted prior to installation. Recommended installation height between 3.5 and 26 m. It can be installed in a duct, plenum or ceiling. The diffuser operates in a temperature range between 15 °C and 40 °C. Made of aluminium with movable steel blades. Standard finish white lacquer RAL 9010.
