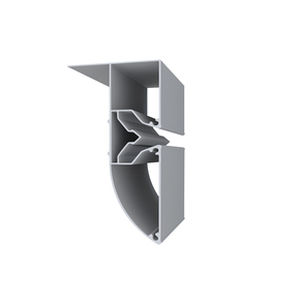

Aluminium profile NO. 30

edgeceilingjoint

Dimensions - 200 × 47 × 105 cm Fixed-height metal structures can be made based on Track No 30. This track is used for straight and curved ceiling structures where the ceiling height level changes at 58 mm. Using this track, one can build a structure for a ceiling with different height levels on site or choose a prefabricated ready-to-install structure instead. Covering strip 15 can be used. • Min height loss 10,5 cm • Ceiling height level change 5,8 cm • The upper ceiling level matches with wall track • Perfect joining of track elements using inserts • Min bending radius is 150mm • Reinforced track edge (ledge) • Dismounting without any mechanical damage • The track is available in 2 lm sections General operational sequence with Track No 30 structures 1. Individual track elements are joined using inserts (pins). The inserts are driven through connections until only a 5-6-mm end protrudes outside. 2. Connection joints between track elements are additionally secured with aluminium bar strips 10-12 cm long and self-tapping screws for metal with pressure pads. It is recommended that each strip is secured with at least four self-tapping screws. Use at least 2 strips per joint (on the front and the back of the track) to ensure secure holding.
