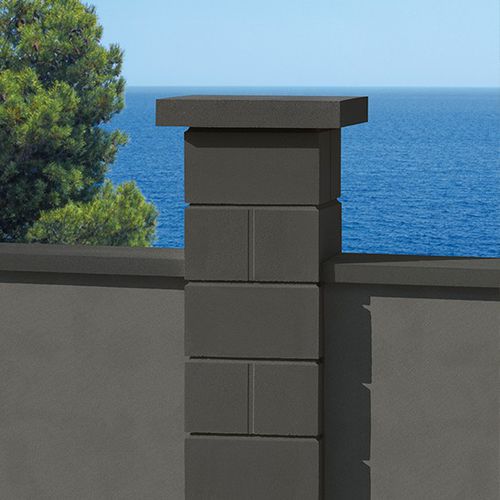

Hollow concrete block PIL Series
for fencingfor foundationfor pillar

hollow concrete block
hollow concrete block
hollow concrete block
hollow concrete block
hollow concrete block
hollow concrete block
hollow concrete block
Add to favorites
Compare this product


Characteristics

Type
hollow
Applications
for fencing, for foundation, for pillar
Technical characteristics
high-resistance
Installation
interlocking
Appearance
stone look
Length

225 mm, 300 mm, 400 mm
(9 in, 12 in, 16 in)

Width

225 mm, 300 mm, 400 mm
(9 in, 12 in, 16 in)

Height

171 mm
(7 in)

Description

This product is a quick and easy laying to construct walls with a perfect well-finished. Precautions to be taken into account: Do not install on freezing or very hot days. Protect foundations from freezing. Use 10/12-mm-diameter corrugated rods to reinforce the Pillars. In normal closures we recommend a Pillar height of 15 pieces (2.5 m high) and blocks of 9 courses (1.5 m high) if we place an ornamental element at the top (Balusters, Screenwalling, etc.), otherwise this height should be greater. Before filling the Pillars or Blocks with mortar check the installation of the pieces and use the opportunity to install any services you require (electricity wires, irrigation pipes…) Installing a door in a pillar: Once the fence has been finished, and when the whole ensemble is dry (wait at least four days), you can fit the door. Do not use the percussion effect on electric drills to make a hole in the Pillar. We recommend supporting the door on a bar anchored to the floor and joined to the pillar at the top, so that the weight of the door (which may be substantial) will be distributed and will not just affect the Pillar. If it is a single-leaf door install the plate or the closure of the lock in the other Pillar. If opening of the doors is mechanised, it must be avoided that the motor hooks onto the PILAR. If it is necessary, the number of bars and the diameter of the armature will need to be increased.
