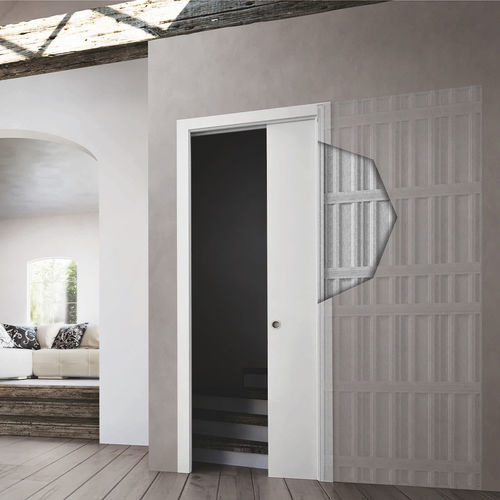

Sliding door pocket system Maestro

kit

A counter-frame for single or double sliding doors The first counter-frame designed and patented by Scrigno. A model equipped with a modular Aluzinc® sidewall for maximum durability and a double-level guide for easy installation and maintenance of accessories. The historical model amid the Scrigno counter-frames, this is a true classic. Available in single and double-door versions, customisable and made to measure. Granluce is designed to be installed in the internal partition walls of two different types: plaster and plasterboard. The version for plaster is applied on perforated bricks of 6/8/10/12 cm, for a total thickness of 90/105/125/145 mm; the one for plasterboard on profiles of 75/100 mm, for a total thickness of 100/125 mm (in case of application of single sheet). It is suitable for housing inside one or two concealed sliding doors, for a maximum weight of 150 kg. In width, the passageway ranges from 600 to 1200 mm for the single-door model and from 1200 to 2400 mm for the double model; in height, they reach up to 2700 mm. The internal seat measures 54/69/89 mm and the maximum thickness of the door is variable depending on the internal seat. The structure is made of Aluzinc (aluminium, zinc and silicon) a corrosion-resistant material. Accessories include a double-shock absorber or slow glass for the version with a glass door. Automated opening and closing with Open 2.0 and radar. Accessories include the kit for simultaneous opening of the double-door version. There are also raw jambs, in melamine or aluminium for the glass version and the trolley kit.
