Aluminum room divider V30

glassaluminum profilefor office

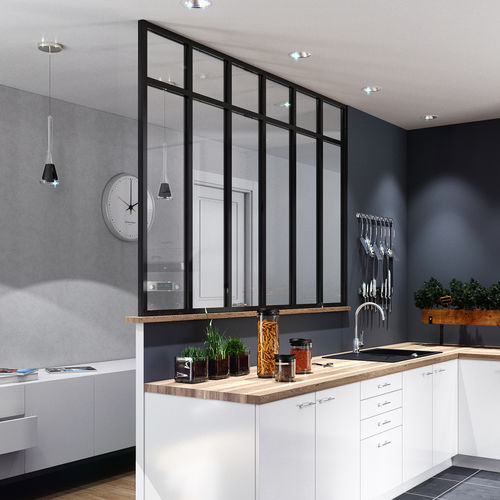

The Half-wall glass partition V30 is a modular internal glazing system combining glass infills and solid panels to create a warm, intimate interior ambience. Designed for easy integration and rapid on-site assembly, the system is suitable for a range of architectural layouts including half-wall installations with hinged or sliding doors.

Overview

• Two-piece aluminium profiles that clip together to accept glazing or decorative panels of 6–8 mm thickness.
• Profiles are cut at 90° and assembled with internal brackets secured by fixing screws; invisible spacers position glazing/panels precisely at the back of the profiles.
• U75 finishing profile can be split for simplified and aesthetic installation on low walls.
• Short, modular range enabling multiple applications: straight runs, right-angle junctions, sloped ceilings, cross profiles, and half-wall solutions with hinged or sliding doors.

Customisation

• Infill options: 6–8 mm glazing or decorative panels.
• Listel glazing bead: allows integration of a customised edge band.
• Modular composition: adhesive flat profiles available in 25, 30 and 40 mm widths to tailor visual proportions.
• Profile finish options: multiple surface finishes including the "Colour collection by SEED"; interior/exterior dual-colour option enabled by the clip-on concept.

Ready-to-assemble kit options

• KITV30LBL810: 810 mm – textured white lacquer, 1 cross profile
• KITV30LNOG810: 810 mm – textured black lacquer, 1 cross profile
• KITV30LBL1200: 1200 mm – textured white lacquer, 2 cross profiles
• KITV30LNOG1200: 1200 mm – textured black lacquer, 2 cross profiles
• KITV30LBL1590: 1590 mm – textured white lacquer, 3 cross profiles
• KITV30LNOG1590: 1590 mm – textured black lacquer, 3 cross profiles
• KITV30LBL1980: 1980 mm – textured white lacquer, 4 cross profiles
• KITV30LNOG1980: 1980 mm – textured black lacquer, 4 cross profiles
• Other kit configurations available on request.

Dimensions (range)

• Width: 400 mm to 5000 mm
• Height: 400 mm to 1700 mm

Technical characteristics / specifications

• Assembly: straight 90° cuts, clip-on glazing beads, bracket-based assembly with brackets secured inside profiles by fixing screws.
• Infill thickness: 6–8 mm glazing or decorative panels.
• Finishing profile: U75 finishing profile (split option for low-wall installation).
• Modular composition: adhesive flat profiles in 25, 30 and 40 mm widths for configuration adjustment.
• Glazing positioning: invisible spacers ensure precise positioning of glazing or panels at the back of the profiles.
• Available configurations: simple glass partition, right-angle, sloped ceiling, cross profiles, half-wall with sliding or hinged doors.
• Ready-to-assemble option: pre-cut, size-adjustable V30 kits (multiple colour/finish and cross-profile configurations listed above).
• Available documentation: product flyer (Symphonée range) in English (see documents field).
