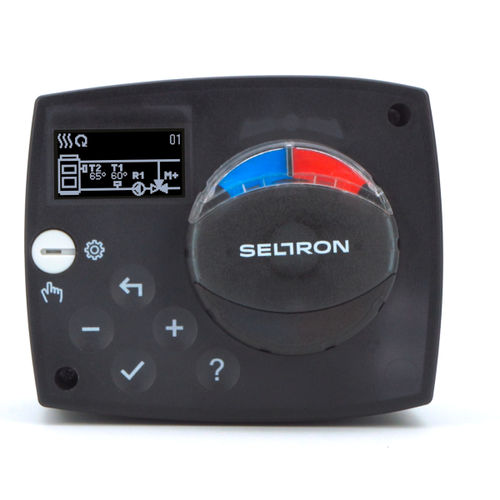

ACC compact controllers are integrated into the actuator housing and are intended for the regulation of the constant temperature of the flow or return line. They are used in heating or cooling systems. The controller allows temperature settings in the range 0–99°C.
Regulation of return temperature of the solid fuel boilers
Supply device charging
Regulation of the inflow temperature for swimming pools and other constant temperature heating or cooling systems
4 preset hydraulic circuit diagrams;
the option for regulating the mixing valve according to the temperature of the piping and the source;
the option for simulating system operation;
installed in the motor housing mounted directly to the mixing valve;
direct mounting on over 20 different mixing valves;
adjustment of the direction of mixing valve rotation
innovative connector system for sensor connection;
remote control option with the help of SeltronHome system.
Backlit OLED display - yes
Touch keyboard - yes
Weekly program timer - yes
Own consumption - Max. 3.5 W
Energy consumption in the standby mode - Max. 0.25 W
Torque - 6 Nm
Running angle - 90 < °
Running speed - 2 min / 90 < °
Operation mode - 3-point PID
Relay outputs - -
Connection voltage - 230 V~, 50 Hz
Clock power supply - CR1025 battery (Li-Mn) 3 V
Clock accuracy - +/-1 s (24 h) at 20 °C
Degree of protection - IP20 according to 60529
Safety class - I according to EN 60730-1
Type of temperature sensors - Pt1000
Housing material - PC – black transparent
Operating temperature - 0÷50 °C
Storage temperature - -20÷65 °C
Product weight - 720 g
No. of pieces in the packaging unit - 24 pcs
